Air Techniques SensorX

Air Techniques SensorX

Air Techniques SensorX

The SensorX intraoral sensor is designed to easily capture intraoral X-ray images that can be viewed, stored, and manipulated for diagnostic use by today’s modern dental practice.

Fast, Easy, and Excellent Images.

View SensorX Brochure


Ease of Placement with Image Quality & Comfort in Mind

  • SensorX rounded corners allow it to be positioned closer to the tooth, helping to produce a sharper image.
  • The white SensorX housing makes it easier to see, place, and position within the mouth.

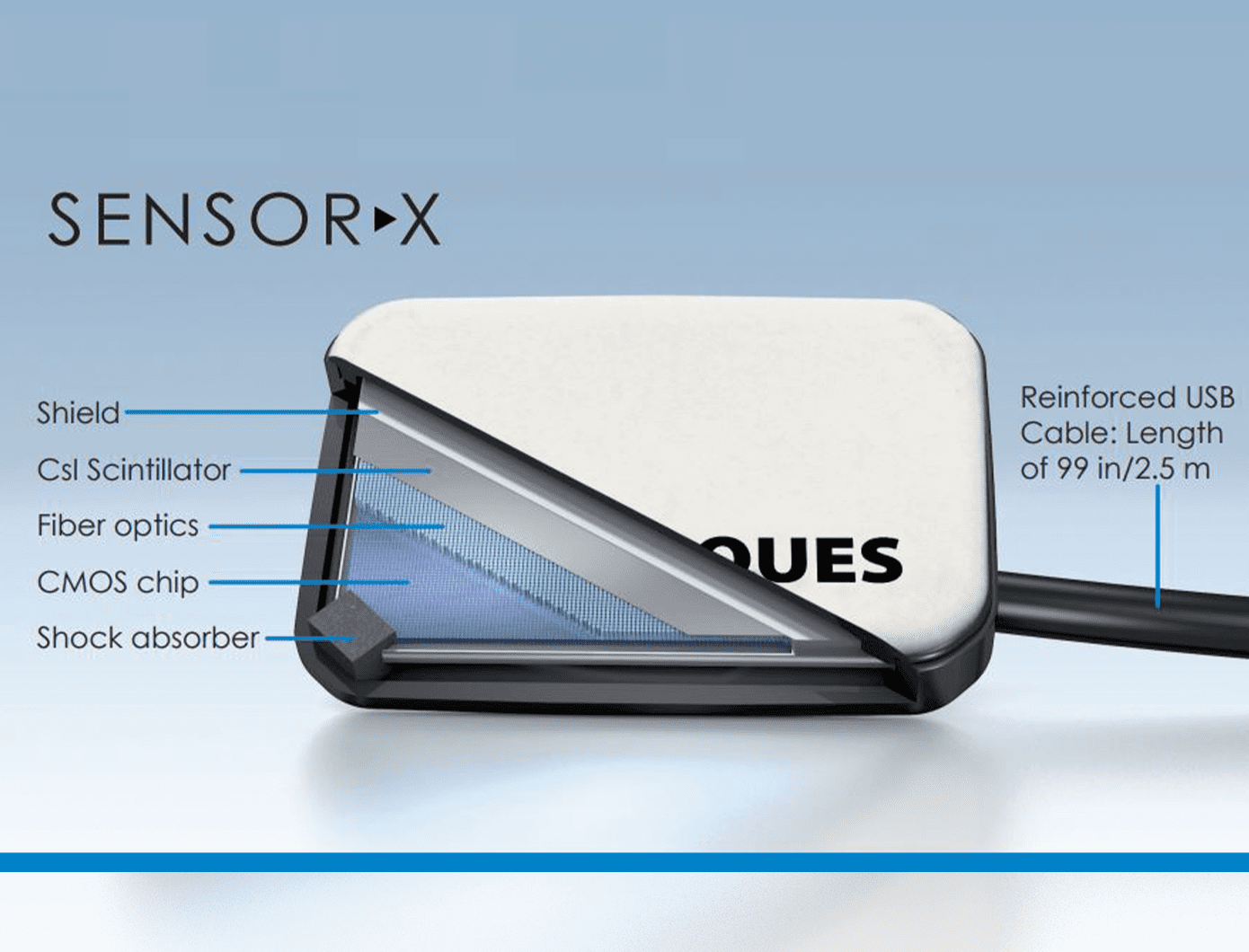

  • Enhanced CsI CMOS technology of the SensorX ensures the fast transmission of high-resolution images.
  • Air Techniques CsI Scintillator layer reduces scatter and concentrates the light collection which dramatically influences the end result image quality.

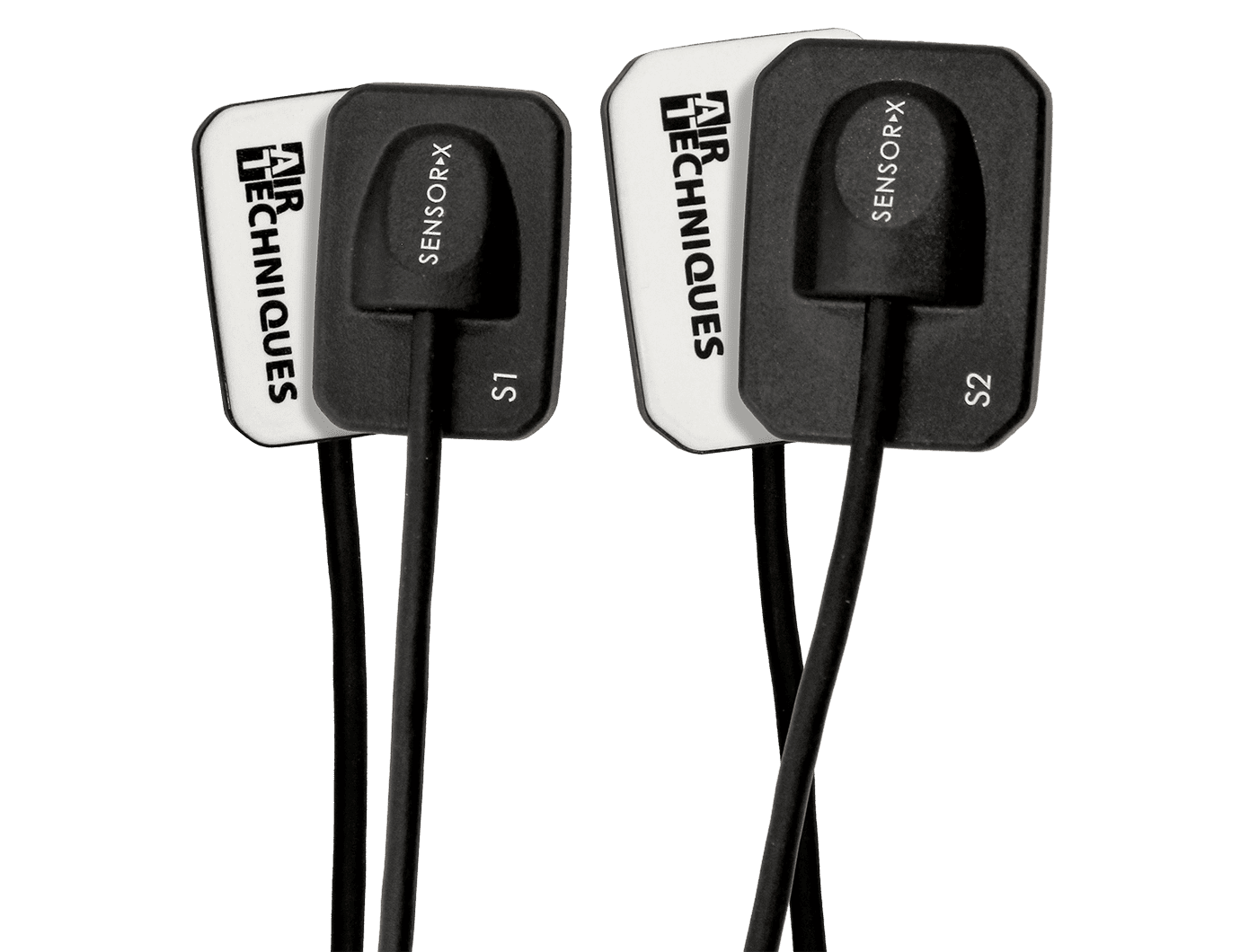

  • Available in Size #1 and Size #2.

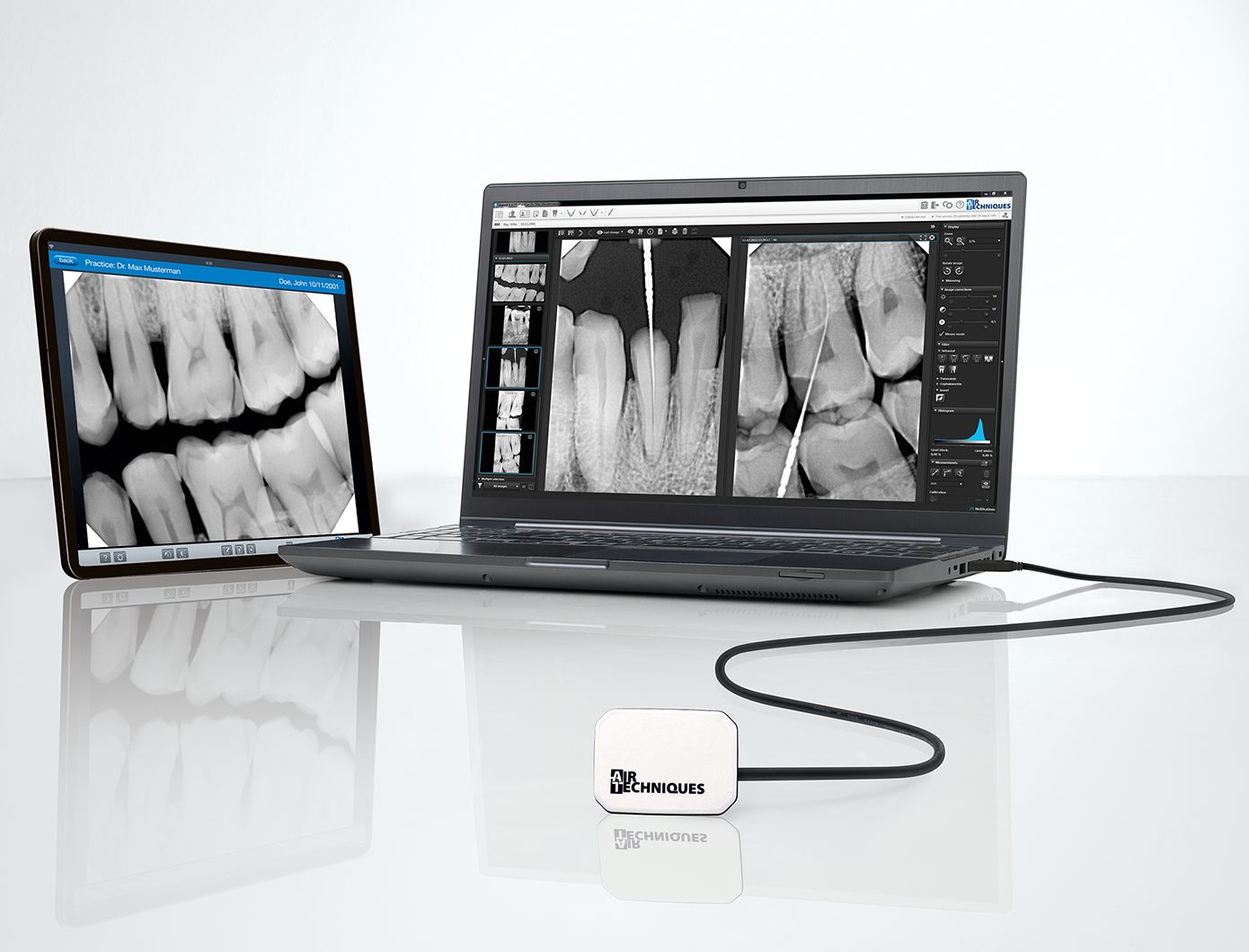

  • Direct USB connection Plug & Play.

Software Advantages

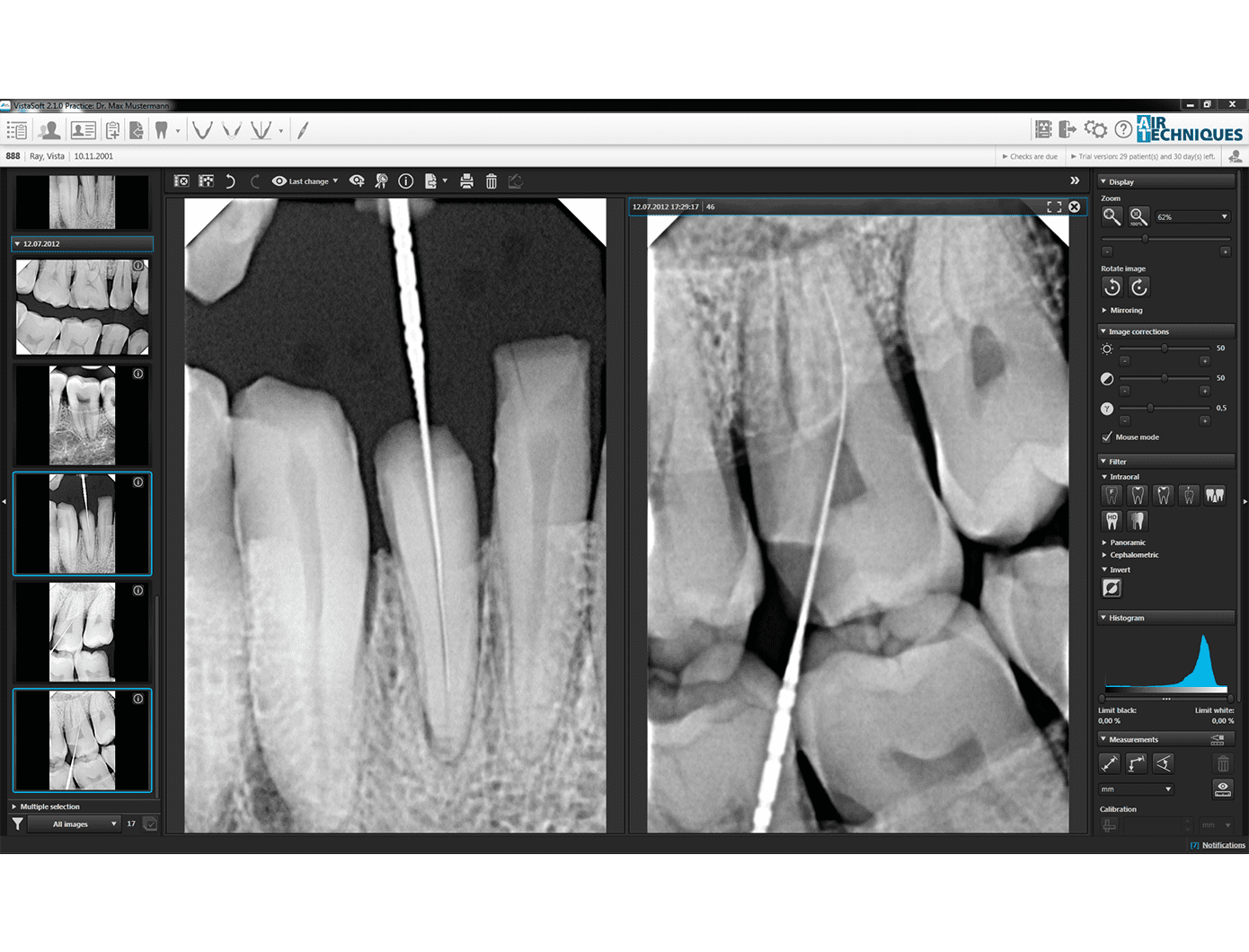

  • VisionX Imaging Software for capturing, storing, and processing images.
  • Standalone or in the office network.
  • Diagnostic support in the form of special filters and versatile image processing (VisionX, DBSWIN, or VistaEasy).
  • Imaging app for iPad (VisionX Mobile Connect).
  • Connection to third-party imaging software via our VistaEasy TWAIN interface.

Complete Hybrid Solution

  • SensorX, combined with ScanX is the ideal complement for a complete hybrid solution.
  • Plug & Play portability across multiple operatories – cost-effective, versatile, and dependable making SensorX the ideal complement to PSPs in endodontics, implantology, and conservative dentistry.
  • Having a combined arsenal of sensors and PSP technology will allow you to easily capture 100% of your images, 100% of the time.
  • Diagnostic tools that deliver speed, efficiency, and comfort.
  • No two patients are alike: Pediatrics to Geriatrics, those with pronounced Tori, gaggers, or even those individuals with special needs; each provides unique challenges. Always have the correct diagnostic tools available to best serve all of our patients.


G9510A Sensor size 1
Sensor Size 1 Dimensions (L x W x D) 1.54 x 1.07 x .25 in
39.0 x 27.4 x 6.3 mm
Number of Pixels 1,050 x 1,580 = 1,659,000
G9520A Sensor size 2
Sensor Size 2 Dimensions (L x W x D) 1.76 x 1.30 x .25 in
44.7 x 33.1 x 6.3 mm
Number of Pixels 1,368 x 1,896 = 2,593,728
Pixel Size (μm) 19 x 19
Theoretical Resolution (LP/mm) 26.3
Effective Resolution (LP/mm) 20.0
Cable Length 99 in/2.51 m
Storage Wall- or pipe-mounted
Greyscale 16 bit (65,536)
PC Connection Direct USB (2.0 or 3.0)
Optional USB Extension 3.28 ft/1m (Included)*
* In the case of a further extension, the use of an active USB hub is recommended
Hygienic Covers/Sheaths/Monarch Surface Disinfectant Wipes :
G9550 Hygienic Protective Covers Size #1 100-pk
G9551 Hygienic Protective Covers Size #1 500-pk
G9554 Hygienic Protective Covers Size #2 100-pk
G9555 Hygienic Protective Covers Size #2 500-pk
H6171 Monarch Surface Disinfectant Wipes 7′′x9′′
H6186 Monarch Surface Disinfectant Wipes 6′′x6.75′′
