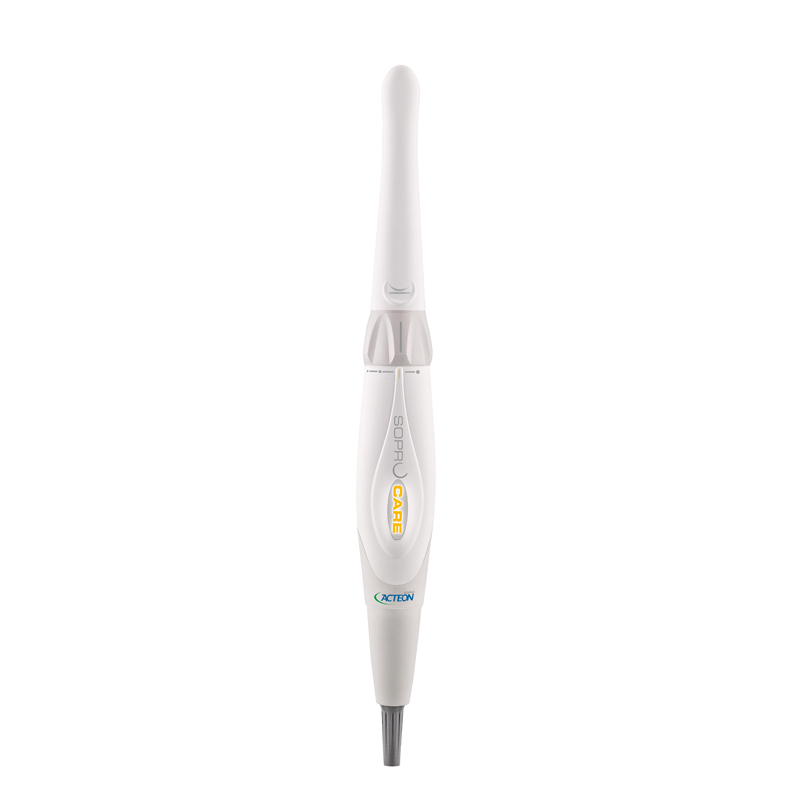

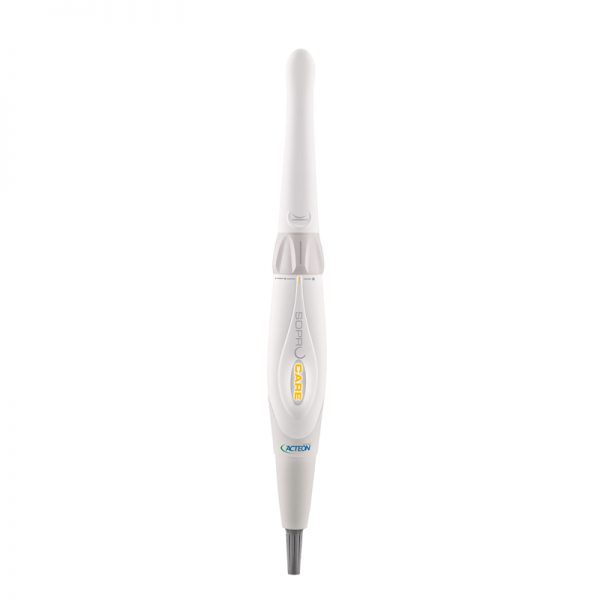

SoproCare – Intra-oral Camera
SoproCare by Acteon
CCD high sensitivity ¼’’ CCD
Resolution (752×582) PAL ; (768×494) NTSC
Lighting : White Mode : 4 LED Blue Mode : 4 LED
Adjustments : 4 pre-set positions (Extra-oral, Intra-oral, CARE, Macro)
Freeze frame with SoproTouch or pedal (option)
Angle of view : 70° Cable length : 2.5 m
Dimensions of the hand piece in mm : L.200 x W.30 x H.24
Weight : 78 g
Take a look at the SoproCARE Clinical Brochure
“Patients treat what they see” – Dr. Jason Dunville, Doctor of Dental Surgery
As the “majority of restorative work originates from the hygiene chair”, SoproCARE gives practitioners the ability to give a “tour of the patients mouth” and have an open dialogue about treatment planning they will understand.
SoproCARE is the only product available today that can show plaque, caries, gingival inflammation, the need for restorative work and perio progression. Thanks to Sopro’s patented auto fluorescence and chromatic amplification technology, SOPROCARE is able to reveal new and old dental plaque. In addition, SOPROCARE is the first product on the market to reveal gingival inflammation.
SOPROCARE displays gingival inflammation as hues of pink all of the way to deep magenta. New plaque is highlighted by its white and grainy characteristics and old plaque is revealed as shades of yellow and orange. SOPROCARE displays occlusal caries in a bright red color in “CARIO” mode, while surrounding, non-affected tissue is displayed in grey scale.
As well as being a diagnostic tool, SOPROCARE also allows the dental practitioner to effectively communicate treatment plans and clinical procedures to the patient in a way they will understand. Already established as a world leader in intraoral cameras, the SOPROCARE continues to deliver the superior image quality that users have come to expect.

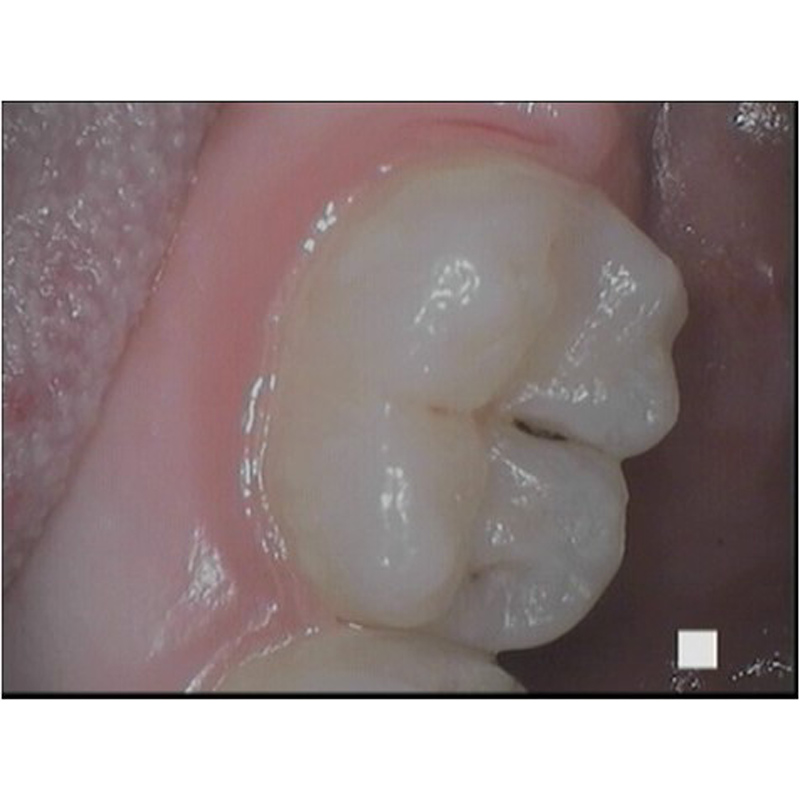

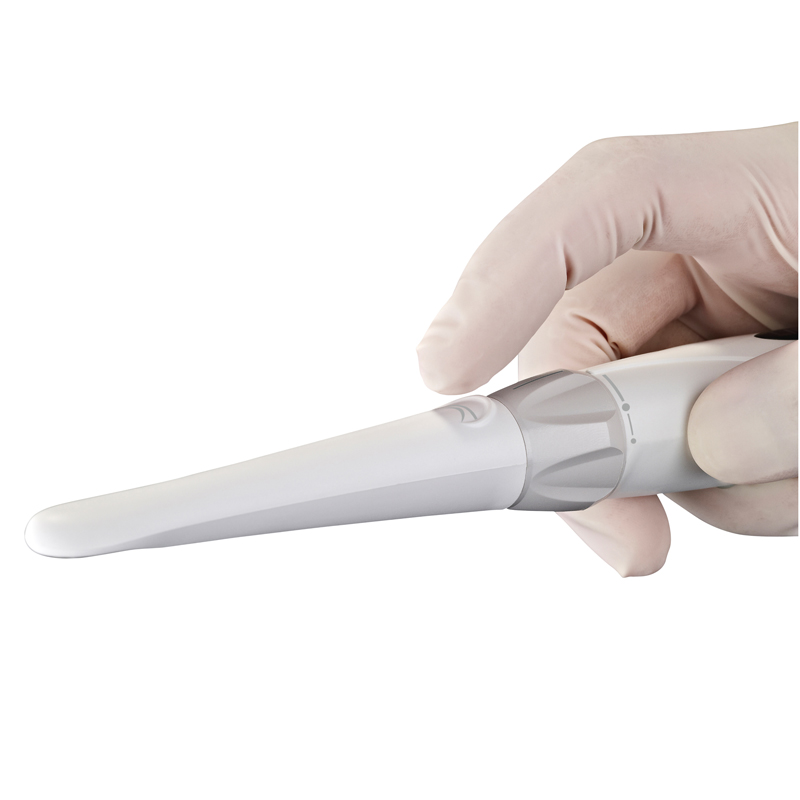

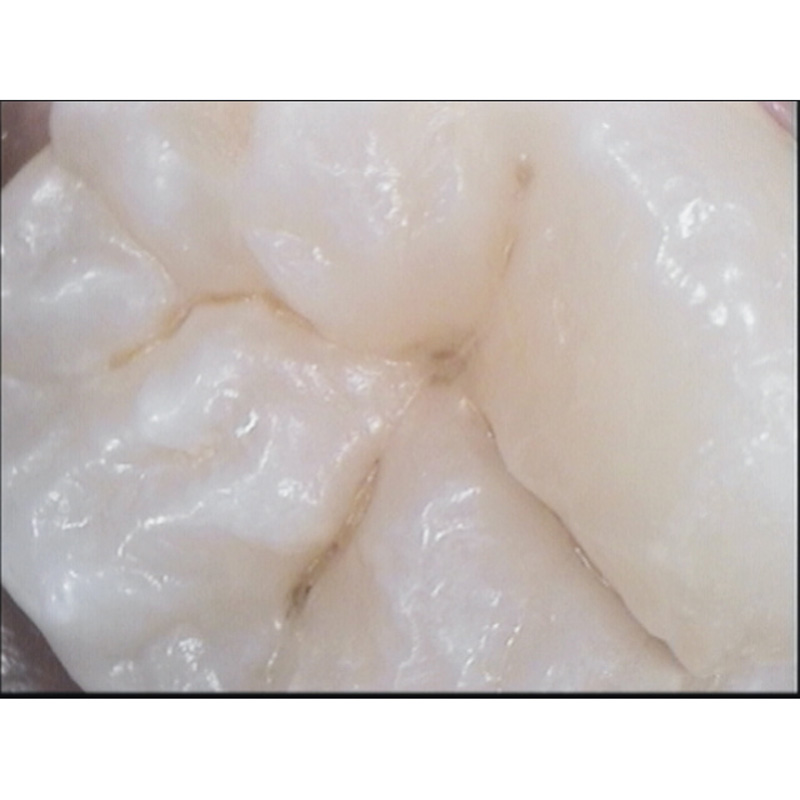

In Daylight Mode, SOPROCARE is used as an intraoral camera, providing all of the necessary tools to perform a complete and time efficient oral examination. A preset focus ring replaces the often unreliable ‘autofocus’ and provides sharp images with no need to wait for the image to adjust, regardless of the object or the distance. With one click, easily go from focal depths of Portrait, Smile, Intra-oral, and finally Macro mode which provides magnification of up to 115 times. 3 modes, 3 needs SOPROCARE meets the needs of prophylaxis by performing a complete and rapid assessment of the patient’s oral health.
The SOPROCARE versatility is combined in 3 modes:

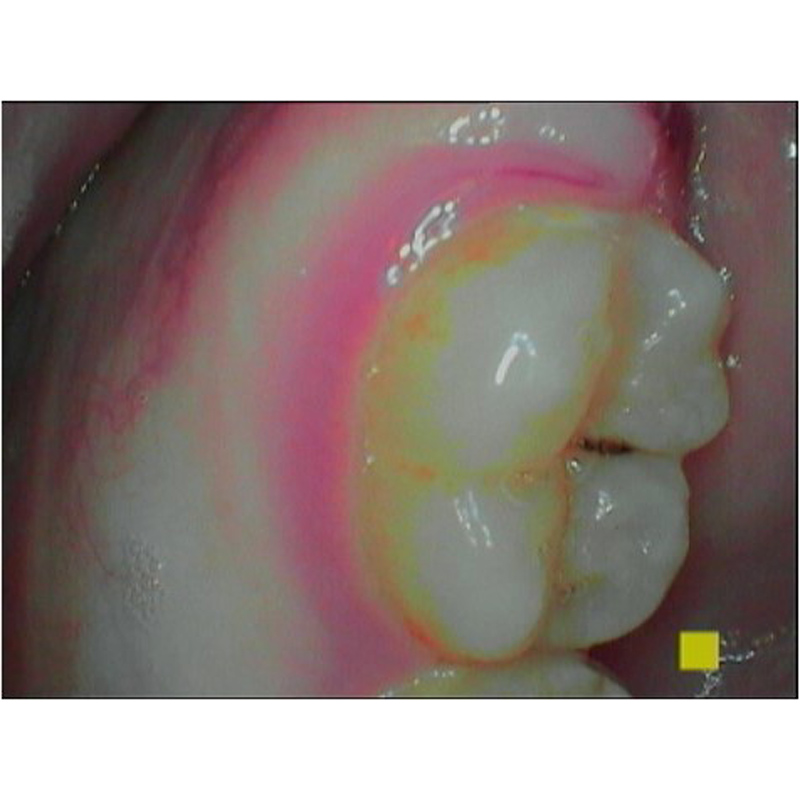

“”PERIO”” Mode: Highlights the old and new dental plaque and gingival inflammations, even at the early stage.

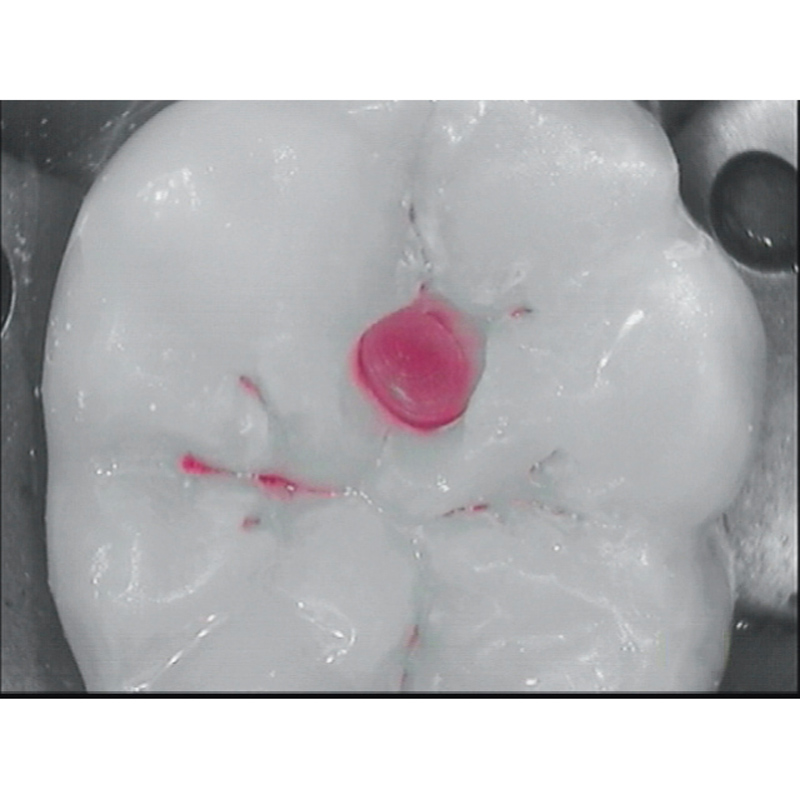

“”CARIO”” Mode: Detects enamo-dentinal caries, from the stage 1 in a simple visual way.
“”DAYLIGHT”” Mode: Macro vision makes visible the imperceptible and allows watching the stability of micro lesions and their evolution.
