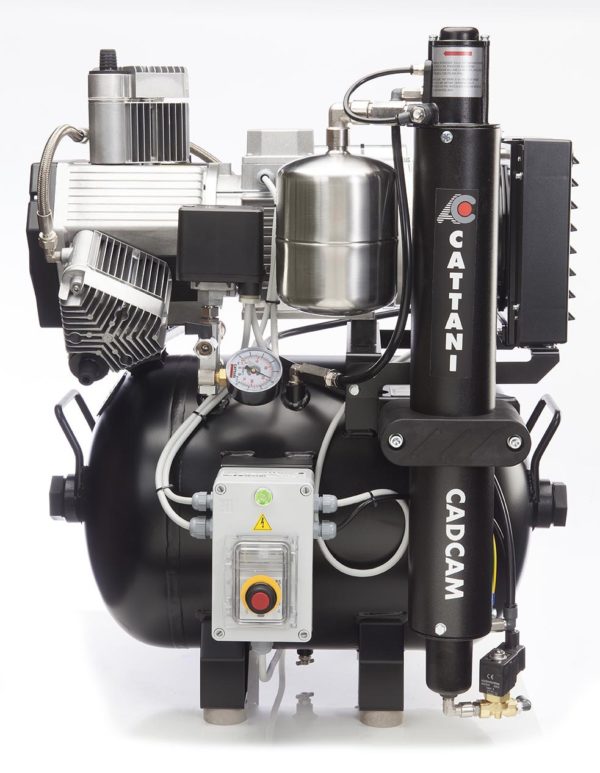

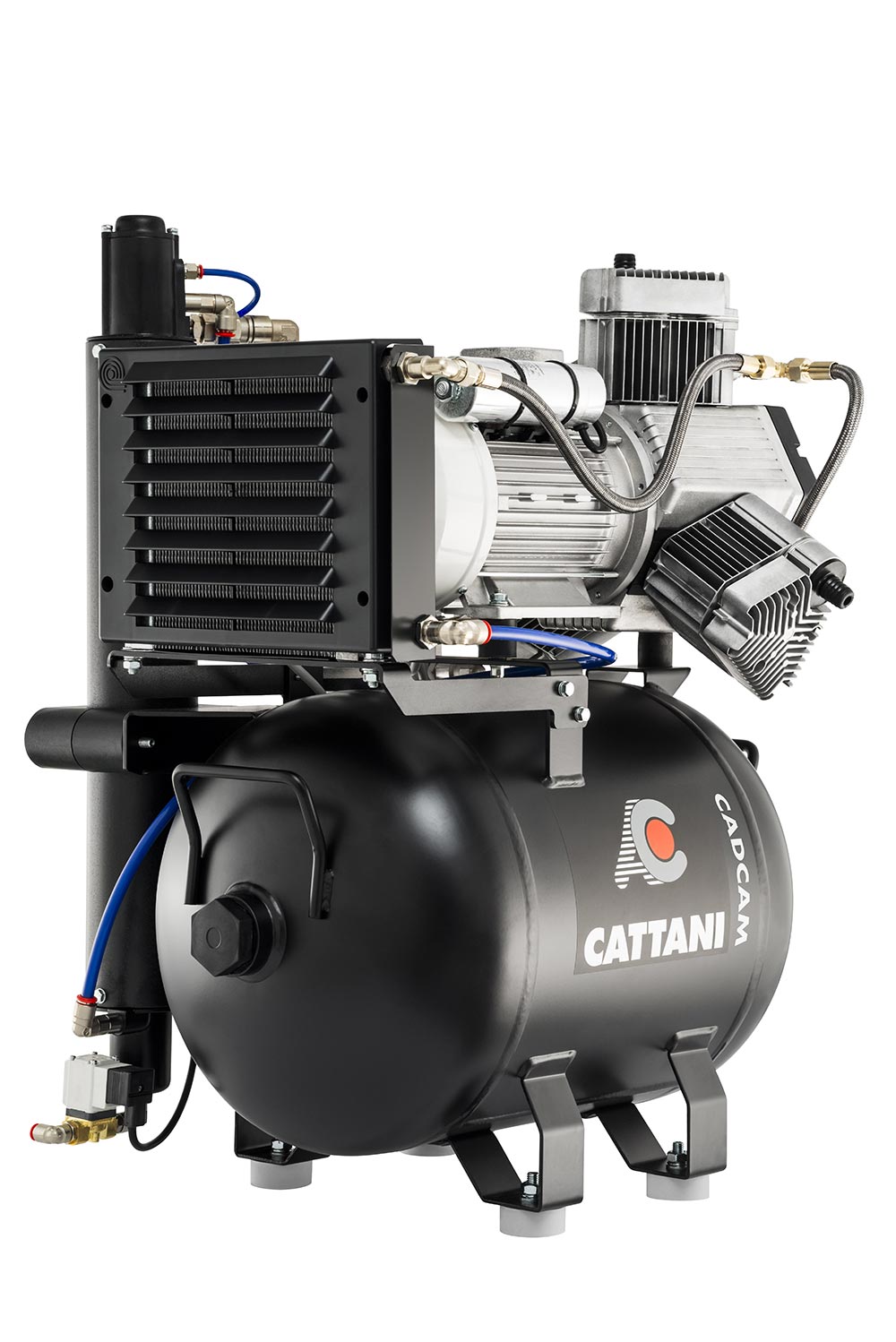

AC 310 – CAD/CAM Milling
Why Cattani CAD/CAM?
- Ultra clean, dry, oil-free air
- Power for the purpose
- Super robust and reliable
- Minimal maintenance
- Optional acoustic hood helps reduce noise
- Internal tank coating ensures patient safety
When only the purest air will do
Cattani’s range of CAD/CAM compressors, deliver the highest quality air, specifically to meet the demands set by CAD/CAM manufacturers.
Purpose built to maintain a constant and sustainable operating pressure of 8 bar over long CAM cycles to ensure optimal mill performance.
Cattani CAD/CAM compressors sit comfortably within ISO standards with a 99.97% efficiency rating for particles greater than 0.3 microns, and so preventing damage to your valuable equipment and precious work.
Our compressors run and run. They’re easy to install and low maintenance, and our CAD/CAM compressors are particularly robust. And nothing says reliability like an industry-leading 7-year warranty.
AC310 WITH DRYERS – TECHNICAL DATA
ITEM CODE K-AC310
NO. OF CYLINDERS 3
NO. OF DRYERS 1
POWER 1˜ 230V 50Hz 1.5kW 10.2A
HEIGHT MM 750
WIDTH MM 620
DEPTH MM 520
WEIGHT KG 64
SOUND OUTPUT dB(A) 73.6
MAX AIR FLOW AT 8 BAR NL/min 165
TANK SIZE (LITRES) 45
