Form Cure
The Perfect Finish, Every Time
Produce parts you’ll be proud to deliver with a tried and tested, start-to-finish dental 3D printing workflow that’s certified biocompatible. All stereolithography 3D prints require rinsing and post-curing to remove uncured resin and achieve peak quality. Our automated solutions make post-processing simple.
Post-Curing, Simplified

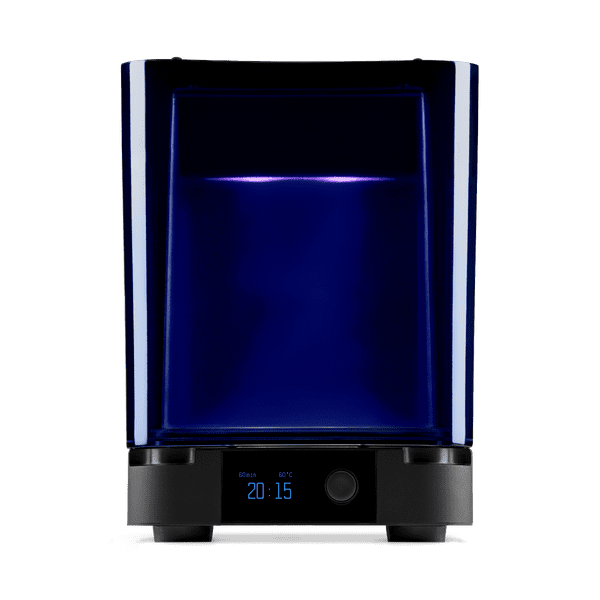

Our automated post-curing solution, Form Cure, includes custom settings that maximize material performance, ensure consistent dimensional accuracy, and meet biocompatibility requirements for each Formlabs material with just the push of a button.
Less Effort, Higher Throughput
Form Wash and Form Cure streamline your 3D printing process so you can consistently produce high-quality parts with less time and effort.
Post-curing maximizes material properties for stereolithography prints, improving parts’ strength and performance. Form Cure precisely combines heat and 405 nm light to consistently post-cure prints.
Form Cure is designed for curing parts printed on the Form 3 generation printers, and can also be used for curing smaller parts printed on our large format 3D printers, Form 3L and Form 3BL
Printer compatibility: Form 3, Form 3L, Form 3B, Form 3BL, Form 2
Form Cure Tech Specs
Curing
FORM CURE | FORM CURE L | |||
---|---|---|---|---|
Printer Compatibility | Form 3+, Form 3B+, Form 3, Form 3B, Form 2 | Form 3L, Form 3BL, Form 3+, Form 3B+, Form 3, Form 3B, Form 2 | ||
Dimensions | 26.2 x 26.2 x 34.0 cm 10.3 x 10.3 x 13.4 in Height when open: 64 cm (25.2 in) |
69.0 x 54.0 x 44.5 cm 27.2 x 21.3 x 17.5 in |
||
Weight | 5.6 kg 12.4 lbs |
24kg 53 lb |
||
Turntable Diameter | 19.3 cm 7.6 in |
39.5 cm 15.6 in |
||
Maximum Part Height | 18.5 cm 7.28 in |
32 cm 12.6 in |
||
Operating Temperature | Suggested 18—28 °C Suggested 64—82 °F |
Suggested 18—28 °C Suggested 64—82 °F |
||
Maximum Cure Chamber | 80 °C 176 °F |
80 °C 176 °F |
||
Light Source | 13 multi-directional LEDs | 45 multi-directional LEDs | ||
LED Power | 39 W | 70W | ||
LED Radiant | 9.1 W | 36W | ||
LED Wavelength | 405 nm | 375 nm, 405nm | ||
Power Requirements | 90–240 V 6.0 A 50/60 Hz 144 W |
100–120 V (NA), 220–240 V (EU) 15.0 A 50/60Hz (NA), 8.0 A 50/60Hz (EU) |
1. Print
Print your parts in just a few clicks with Formlabs 3D printers.
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2F52%2F59%2F525924ba-bd2c-4bed-b115-451409ca2e46%2Foptimized_for_web_jpeg-02282021_stm_loc__392s.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2F52%2F59%2F525924ba-bd2c-4bed-b115-451409ca2e46%2Foptimized_for_web_jpeg-02282021_stm_loc__392s.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2F52%2F59%2F525924ba-bd2c-4bed-b115-451409ca2e46%2Foptimized_for_web_jpeg-02282021_stm_loc__392s.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2F52%2F59%2F525924ba-bd2c-4bed-b115-451409ca2e46%2Foptimized_for_web_jpeg-02282021_stm_loc__392s.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
2. Wash
Insert the build platform directly into Form Wash after printing for a consistent, automatic rinse.
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fec%2F38%2Fec38075d-4549-4d3b-949a-42d1bf29f6af%2Foptimized_for_web_jpeg-06112018_wandc_dental_058.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fec%2F38%2Fec38075d-4549-4d3b-949a-42d1bf29f6af%2Foptimized_for_web_jpeg-06112018_wandc_dental_058.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fec%2F38%2Fec38075d-4549-4d3b-949a-42d1bf29f6af%2Foptimized_for_web_jpeg-06112018_wandc_dental_058.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fec%2F38%2Fec38075d-4549-4d3b-949a-42d1bf29f6af%2Foptimized_for_web_jpeg-06112018_wandc_dental_058.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
3. Cure
Transfer the part to our automated post-curing station, Form Cure, and cure using our recommended settings.
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb2%2Fe1%2Fb2e1dd82-107c-4ff5-8936-8a6affa6f485%2Foptimized_for_web_jpeg-07022018_dentalwc_137_copy.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb2%2Fe1%2Fb2e1dd82-107c-4ff5-8936-8a6affa6f485%2Foptimized_for_web_jpeg-07022018_dentalwc_137_copy.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb2%2Fe1%2Fb2e1dd82-107c-4ff5-8936-8a6affa6f485%2Foptimized_for_web_jpeg-07022018_dentalwc_137_copy.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb2%2Fe1%2Fb2e1dd82-107c-4ff5-8936-8a6affa6f485%2Foptimized_for_web_jpeg-07022018_dentalwc_137_copy.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
4. Done!
Parts are ready to deliver.
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb8%2Ff9%2Fb8f9b0fb-a156-45b3-84a4-bfb2d5d366b8%2Foptimized_for_web_jpeg-06132020_d_lt_clear_v2_366.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb8%2Ff9%2Fb8f9b0fb-a156-45b3-84a4-bfb2d5d366b8%2Foptimized_for_web_jpeg-06132020_d_lt_clear_v2_366.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb8%2Ff9%2Fb8f9b0fb-a156-45b3-84a4-bfb2d5d366b8%2Foptimized_for_web_jpeg-06132020_d_lt_clear_v2_366.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
![](https://dental.formlabs.com/_next/image/?url=https%3A%2F%2Fdental-media.formlabs.com%2Ffiler_public_thumbnails%2Ffiler_public%2Fb8%2Ff9%2Fb8f9b0fb-a156-45b3-84a4-bfb2d5d366b8%2Foptimized_for_web_jpeg-06132020_d_lt_clear_v2_366.jpg__1354x0_q85_subsampling-2.jpg&w=3840&q=75)
