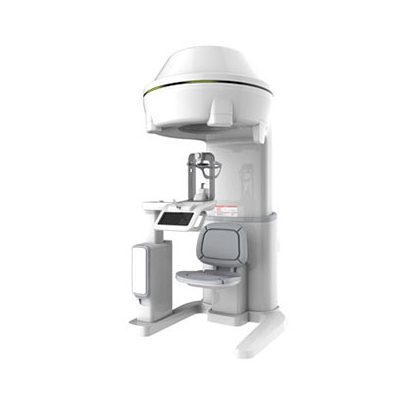

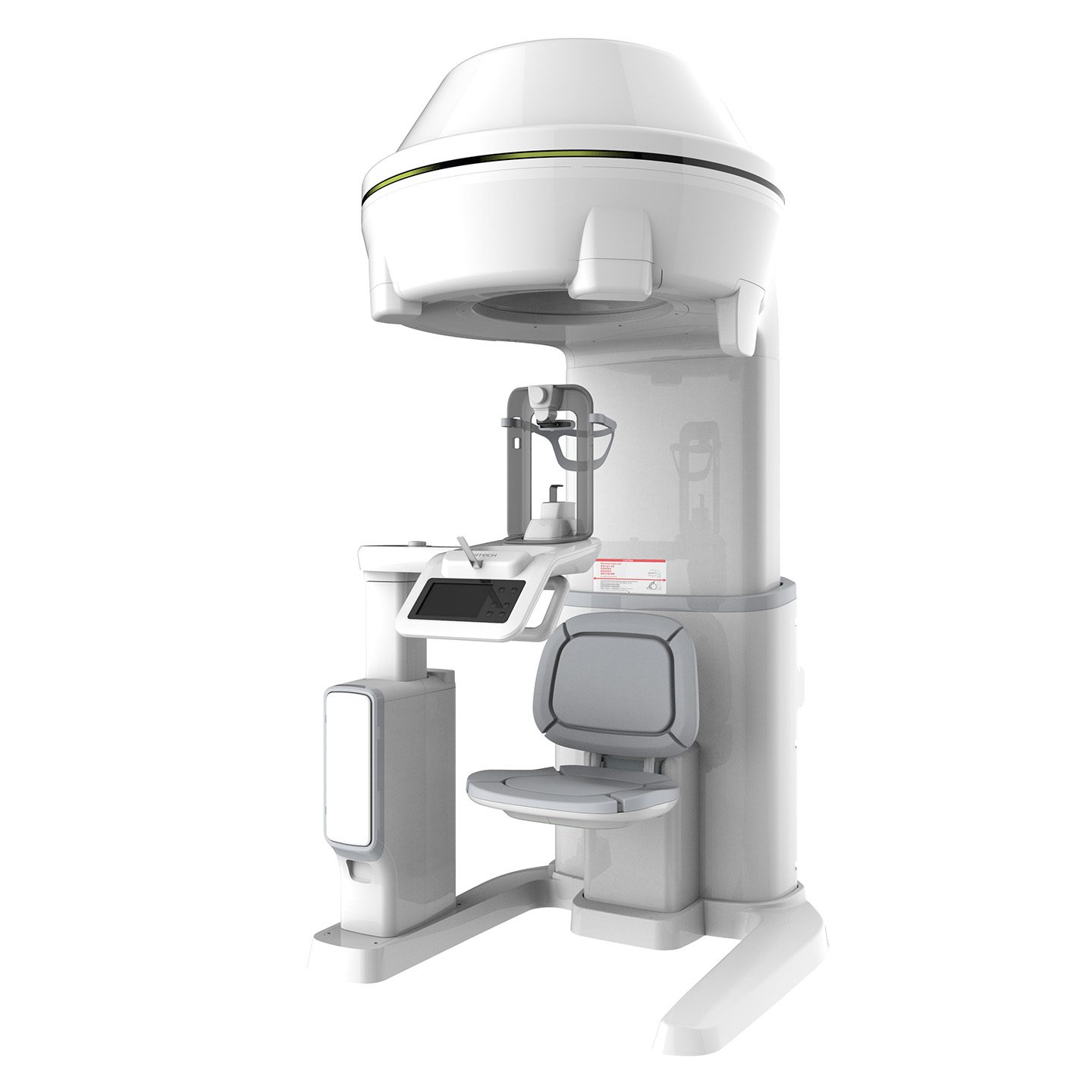

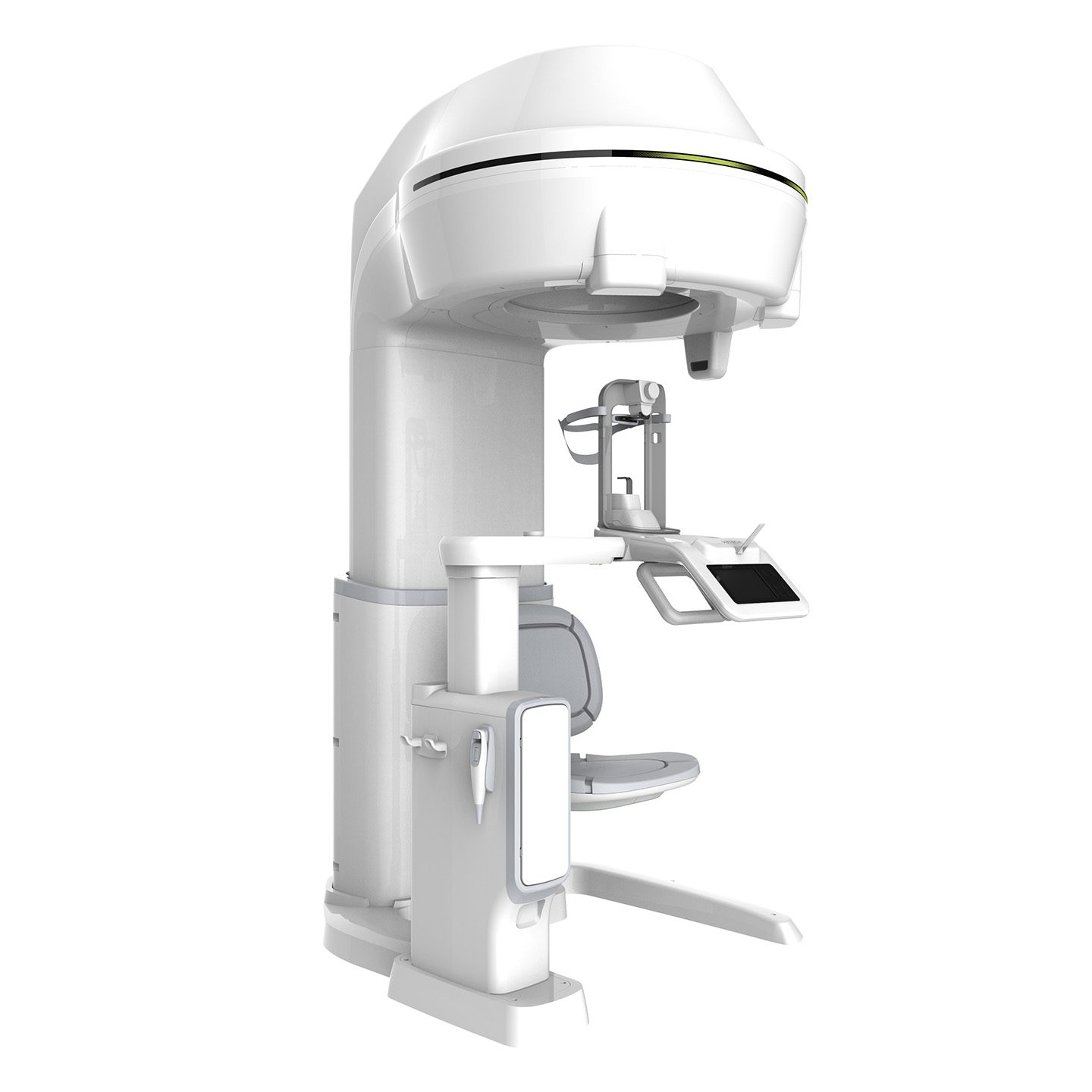

Vatech 3D Green 21

Vatech 3D Green 21

Vatech 3D Green 21

RASING THE BAR FOR EXCELLENCE VATECH’S NEW PREMIUM SOLUTION, Green21

Multi-modality CBCT, most comprehensive set of FOV sizes collimated from 21×19 down to 8×8, to provide a whole array of diagnostic tools to the discerning clinicians.

0000
FOV Size 21×19
  • Oral and maxillofacial surgery
  • Facial reconstructions
  • Orthodontic treatment planning
  • Complex orthognathic cases
1 Scan 6 Images
  • CBCT
  • Auto Pano
  • Auto Ceph[PA]
  • Auto Ceph[Lateral]
  • Auto Ceph[SMV]
  • Auto Ceph[Waters’ view]

Consult in New Terms with Auto Images!

POWERFUL DENTAL DIAGNOSTIC VALUE WITH 3D IMAGES

Green21 provides 4 multi FOV sizes ranging from 8×8 to 21×19 for Dental CT modality. Meaning, you can select the most appropriate FOV for a particular diagnostic task.



THE OPTIMAL SOLUTION FOR ENT DIAGNOSIS

Green21 provides ENT mode(Airway / TB&PNS) for ENT specialists. The fields of view (17×11) are set based on patients’ most common cases such as cholesteatoma, chronic sinusitis, sleep apnea syndrome.

[Airway] A powerful function for Airway Volume Analysis

Simple Airway Selection
  • 2-click airway region selection
Automatic Airway Volume Measurement
  • Segmented airway volume and color coded thickness measurements
  • Automatically calculated total volume and minimum area measurements

PROFESSIONAL DIAGNOSTIC VALUE WITH PANORAMIC IMAGES

Green21 provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

MAGIC PAN

MAGIC PAN creates a more superb panorama image.
It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).

NOMAL PAN
MAGIC PAN

Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.

SPECIFICATION

Function CT [Auto Pano/Auto Ceph] + Pano + 3D Photo(Optional)
CT – FOV Size (cm) Dental CT : 21 x 19, 17 x 15, 12 x 9, 8 x 8
ENT CT : 21 x 19, 17 x 11 [TB&TNS], 17 x 11 [Airway]
Scan Time (sec) Pano : 13.5
CT : 18
Voxel Size (mm) 0.12 ~ 0.4
Sensor Type CMOS
Focal Spot 0.5 mm
Gray Scale 14 bit
Tube Voltage 60 – 120 kV
Current 4 – 10 mA
Patient Position Seated / Wheel-chair accessible
Weight 321 kg [708lbs]

The specifications are subject to change without prior notice.

DIMENSIONS [UNIT : MM]

Top view

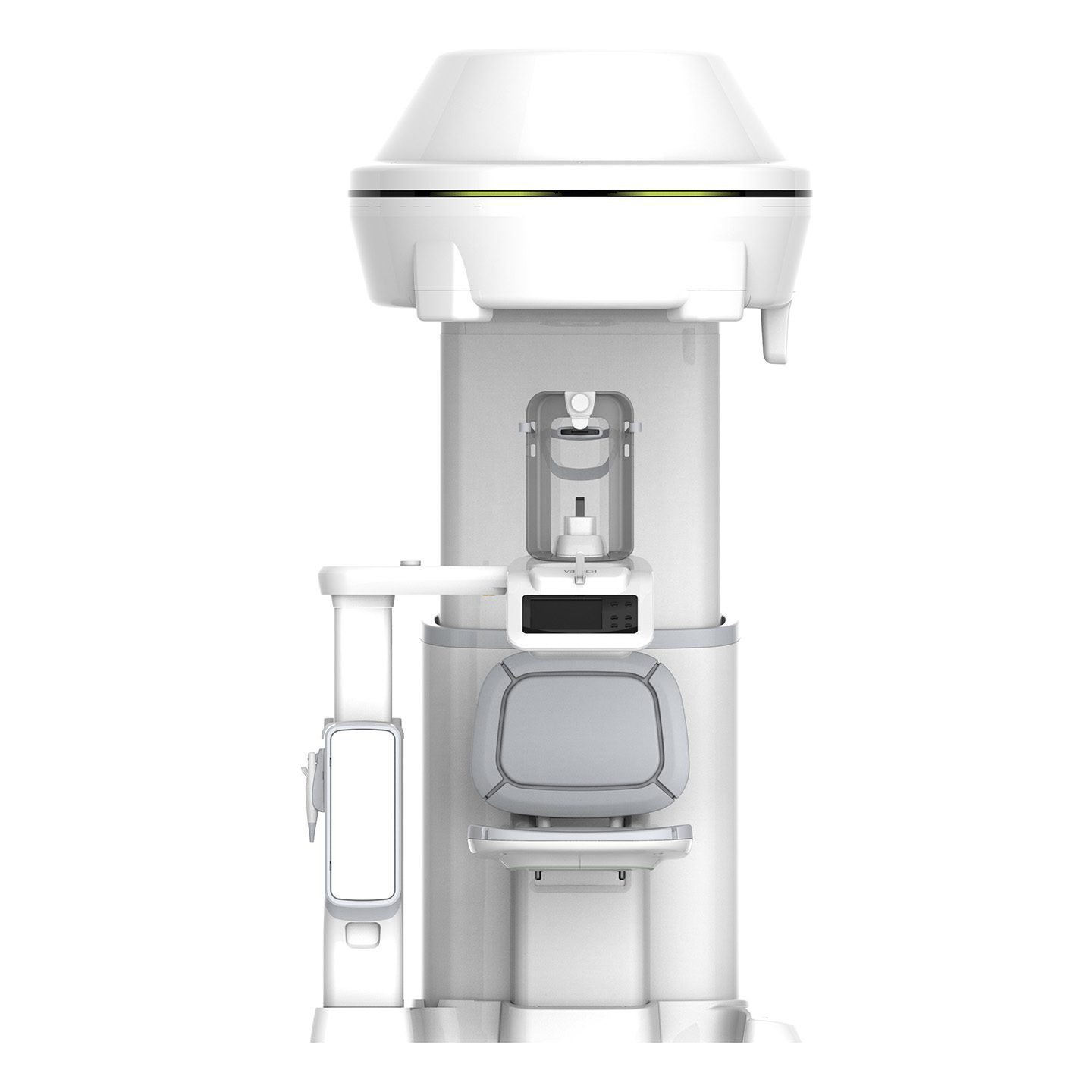

Front view
Side View
