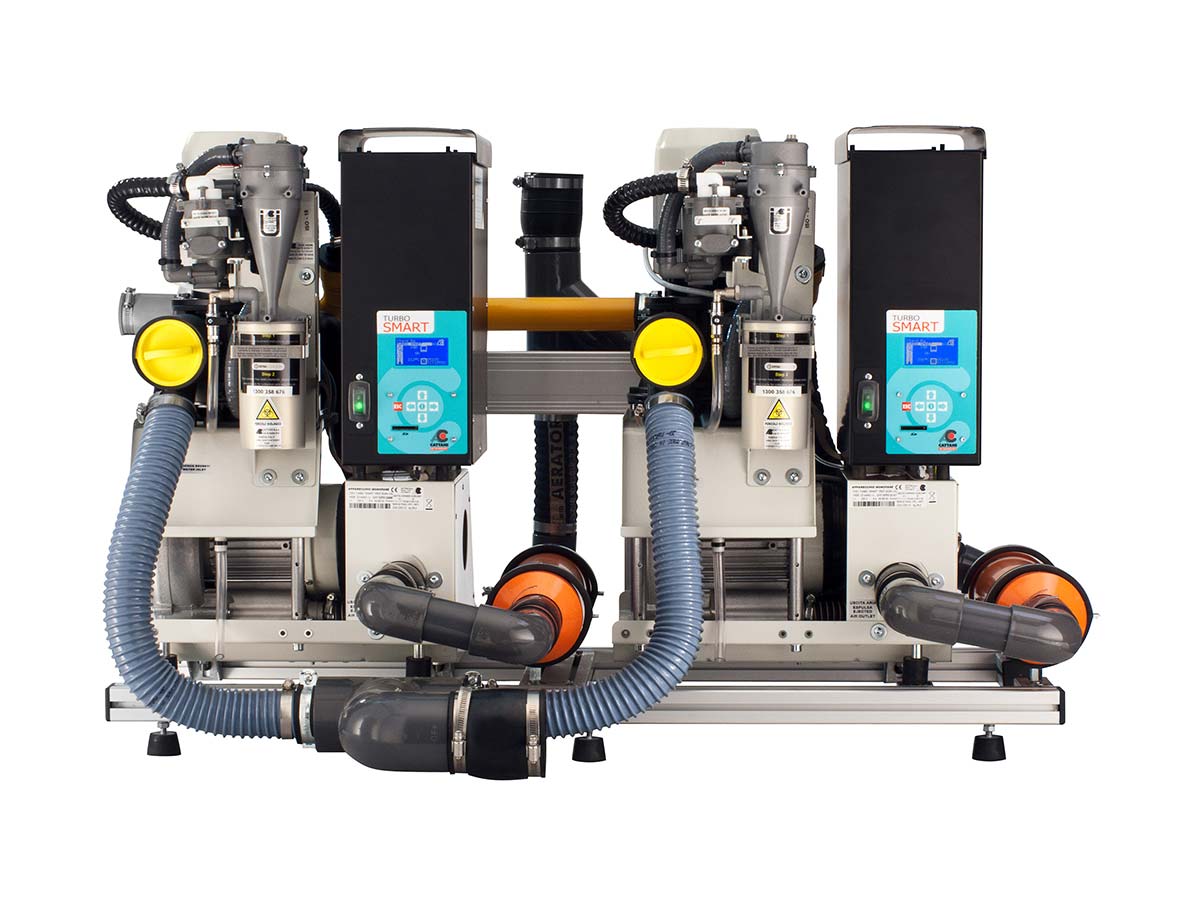

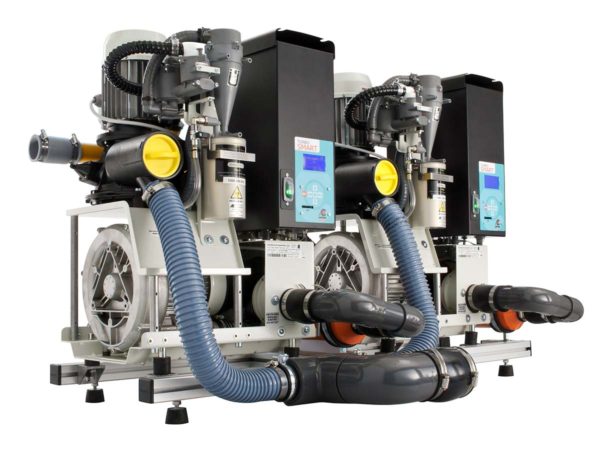

Tandem Turbo SMART with ISO
Cattani SMART systems is a semi-wet suction with inverter control. It is our most powerful suction system for its compact size. And it’s available with amalgam retention.
SMART by name, smart by nature
Traditional suction motors have a fixed speed that makes them notoriously inefficient: when just a small number of chairs are in use, the motor’s energy consumption remains constantly high. But Cattani SMART suction motors always know what’s going on in the surgeries, thanks to inverter technology, and adjust performance accordingly.
Inverter control optimises performance and efficiency
The principle is simple: the inverter is an electronic control that can vary the speed and therefore the output of the suction motor. It adjusts the power used to suit the actual requirements of the clinic – no more, no less.
Built-in redundancy keeps you running
Thanks to inverter technology, installing parallel SMART suction systems and have them “talk” to each other is a simple exercise. This way, you can expand clinic capacity easily and at the same time introduce built-in redundancy, or back-up, to ensure the clinic keeps running no matter what.
Tandem Turbo SMART – TECHNICAL DATA
ITEM CODE C-1TM000
NO OF SEATS 5
POWER 1PH, 2 x 6.5A, 2 x 1.5 kW
HEIGHT MM 740
WIDTH MM 1250
DEPTH MM 760
WEIGHT KG 85
SOUND OUTPUT dB(A) 72
MAX AIR FLOW l/min 2800
MAX VACUUM FOR CONTINUOUS OPERATION mBar 210
