NSK Surgic Pro2 Complete Set with X-SG20L

NSK Surgic Pro2 Complete Set with X-SG20L

NSK Surgic Pro2 Complete Set with X-SG20L

Go beyond.

The internationally acclaimed Surgic Pro surgical micromotor system has evolved into “Surgic Pro2”.

There are 3 progress points, in operation, safety and wireless extensibility.

MODEL: Surgic Pro2 OPT
ORDER CODE: Y1500511

Optic

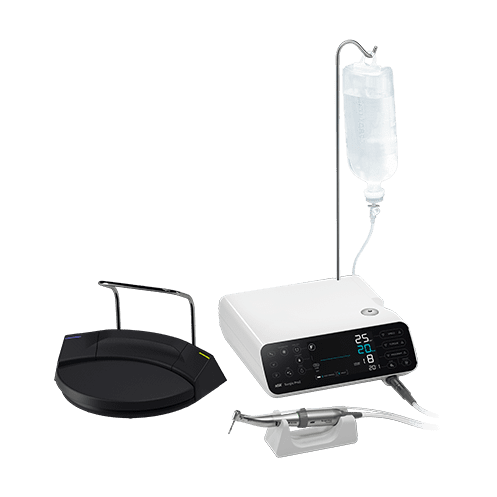

COMPLETE SET with X-SG20L

Contents – COMPLETE SET with X-SG20L
Control Unit / SGL80M Optic Micromotor / X-SG20L Optic Handpiece (20:1 Reduction) / FOOT CONTROL WIRELESS / Irrigation tube (pack of 3) and other accessories

Download Brochure

0000

Specifications

  • Power Supply: AC 100-240 V 50/60 Hz
  • Max. Pump Output: 75 mL/min
  • Programs: 8 Programs / Implant Systems
  • Dimensions: W 245 x D 235 x H 90 mm
  • Torque: 5-80 Ncm
  • Motor Speed: 200-40,000 min-1
  • Light Power (Optic Micromotor): Over 32,000 LUX
  • Foot Control Functions: Coolant Solution Flow Volume Button, PRG(Program) Button, Forward/Reverse Button, Speed Control Pedal

3 Progress Points







  • NSK’s ‘Advanced Handpiece Calibration’ (AHC) function corrects the differences in actual handpiece condition using automatic calibration with no load current and load-bearing calibration to achieve accurate torque values for succesful implant surgery.



Technology & Function

LCD Touch Panel

LCD Touch Panel

Visibility is guaranteed with the large, back-lit, high-contrast, LCD panel.
The display can be adjusted in 10 brightness levels. The display’s intuitive and easy-to-understand icons allow for smooth operation.

Easy-clean flat screen display

Easy-clean flat screen display

The sensitivity of the touch panel can be adjusted to reliably respond when surgical gloves and surgical barrier sheets are in use. Ultra narrow bezel of the display makes cleaning easier. The new design takes into account the latest treatment and cross-infection control requirements.

Silent and Smooth Irrigation Pump

Silent and Smooth Irrigation Pump

The irrigation pump provides consistent and steady flow operating quietly in the background. Irrigation tube set-up is simple and straight-forward and the pump fits seamlessly in the compact and elegant design of Surgic Pro2.

FOOT CONTROL WIRELESS

FOOT CONTROL WIRELESS

Bluetooth connectivity allows selection of the optimal position without worrying about cable length. The foot controller is 400g lighter than the previous model (handle included) making it easy to reposition. You can keep your focus on the treatment.
The “Coolant Solution Flow Volume Button”, “Program Button” and “Forward/Reverse Button” may be customized using the 3
installed buttons allowing the operator to choose their preferred mode of operation. The energy-efficient power supply uses 3 AAA batteries, which last about 6 months.
A flashing light indicates when the batteries are running low.

Linked with the

Linked with the “VarioSurg 3” ultrasonic bone surgery system

Surgic Pro2 can easily be linked with the NSK ultrasonic surgical system VariosSurg 3 by adding our bluetooth link module.

With the NSK link stand the two units can be safely stacked to save space.

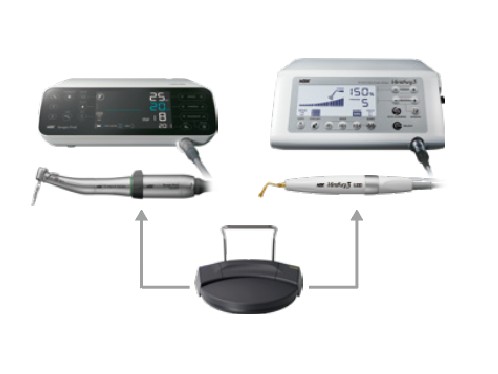

One Foot Control

One Foot Control

You can easily switch between Surgic Pro2 and VarioSurg 3 for improved flexibility and workflow.

Linked with iPads

Linked with iPads

Installing a dedicated application and connecting an iPad to the control unit enables real-time display of detailed procedural data, such as the rotation speed and the torque range.

Procedural data can also be saved. Data can also be displayed and saved when connecting with Osseo 100+. Traceability data management of procedural details allows implant treatment to be tailored to individual patients.

Visibility is significantly improved with the high-resolution color LED

Visibility is significantly improved with the high-resolution color LED

Use of high-resolution color LED allows blood and gums to be seen as if naturally-lit, thereby providing increased visibility during treatment. The LED light source generates a minimal amount of heat and has excellent life expectancy.
