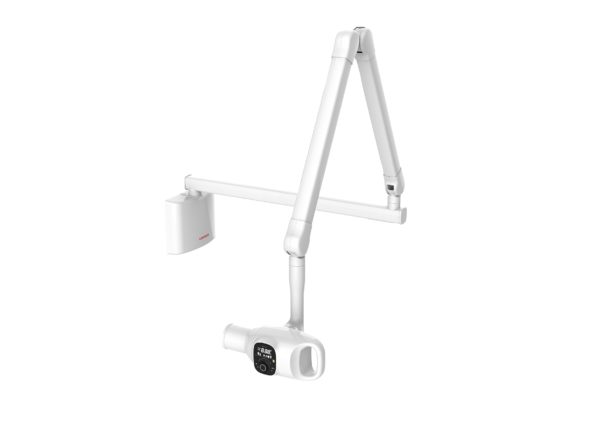

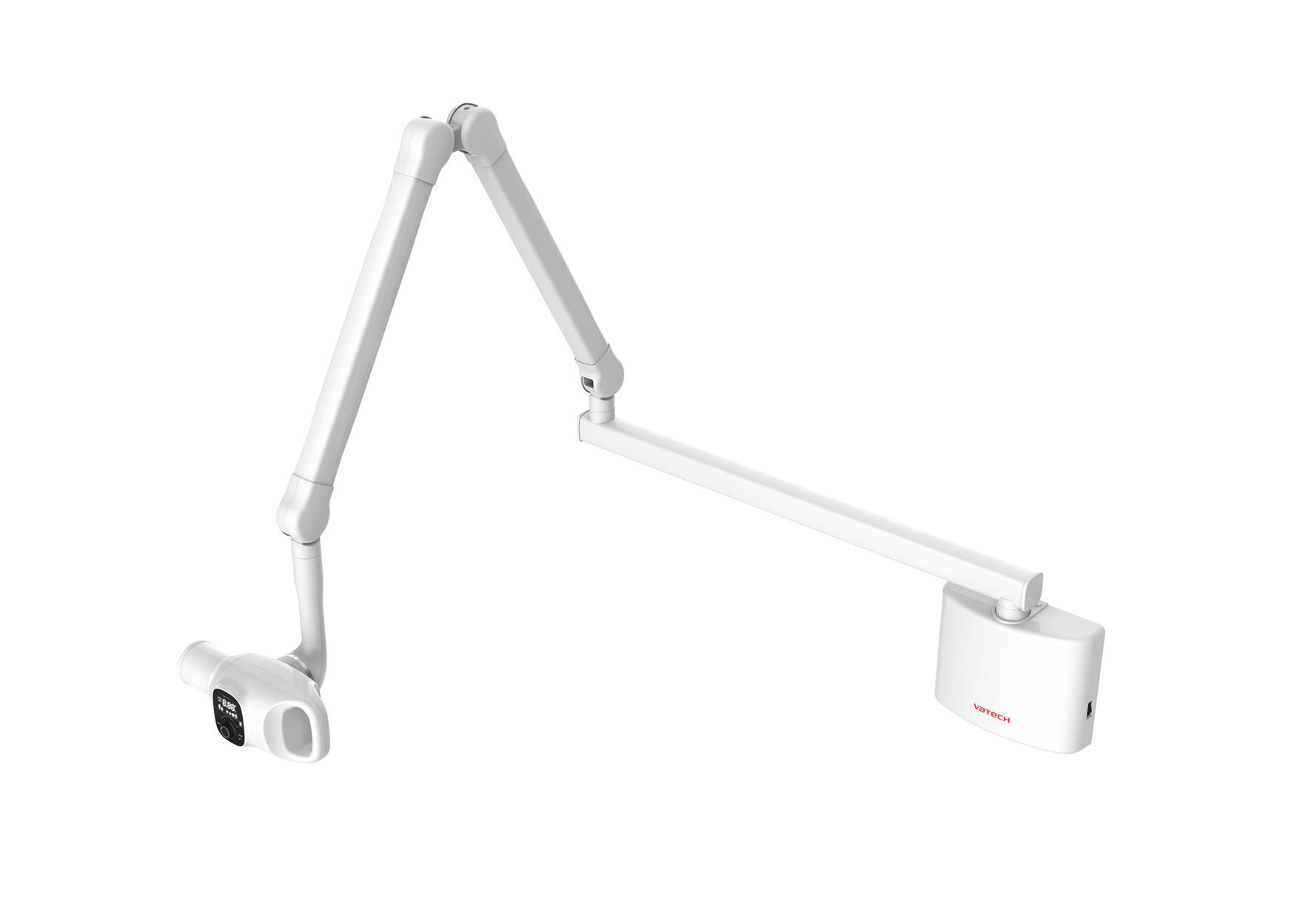

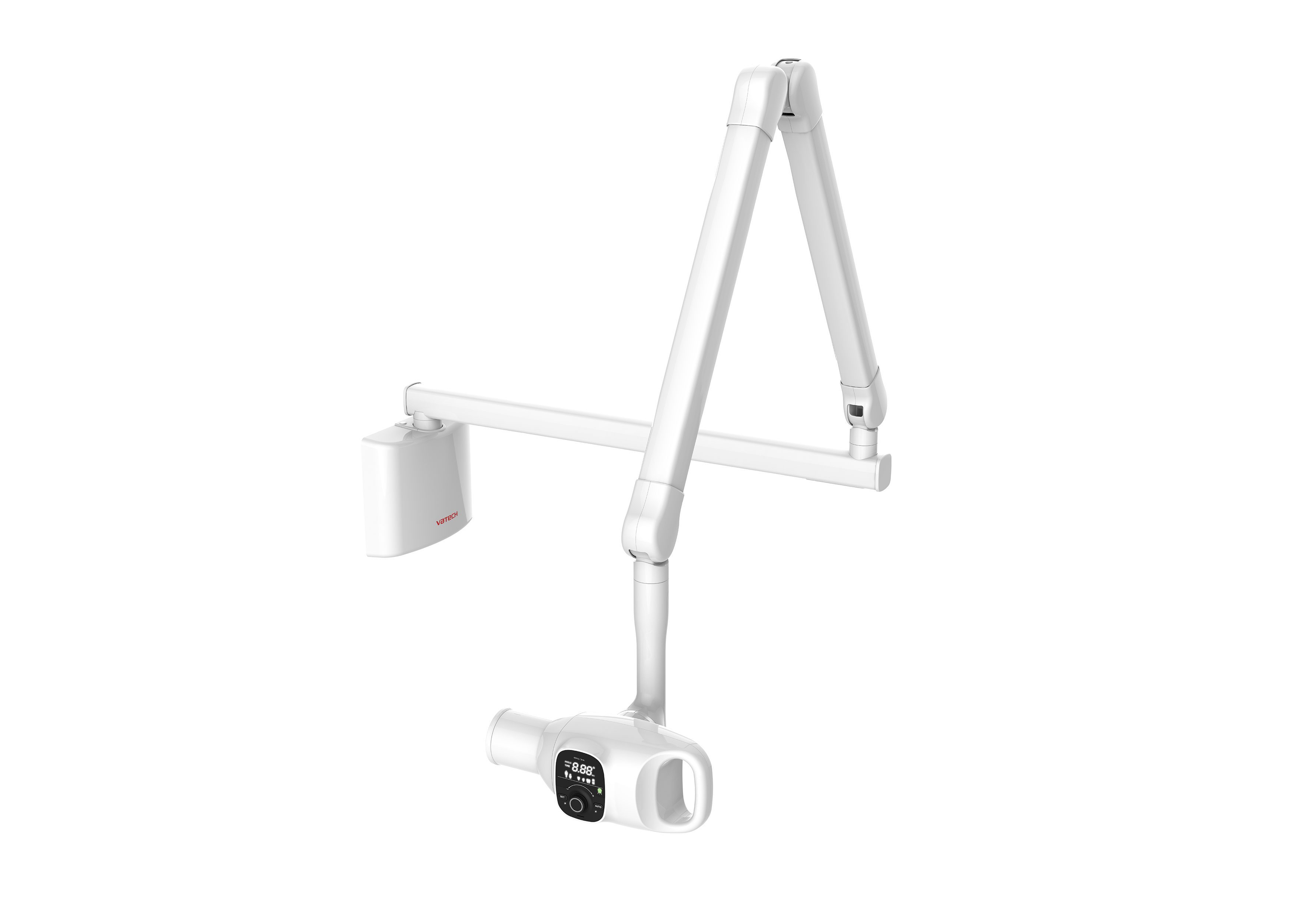

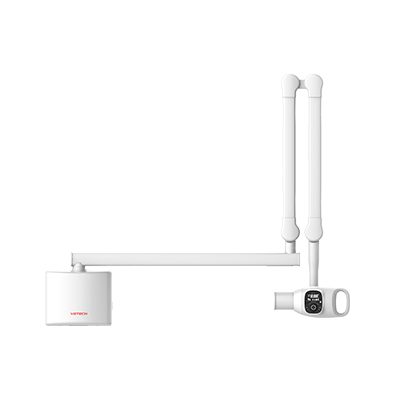

Vatech EzRay Air Wall
Vatech EzRay Air Wall
THE SMART ESSENTIALS FOR YOUR CLINIC, EzRay Air
*Smart angulation for optimal results

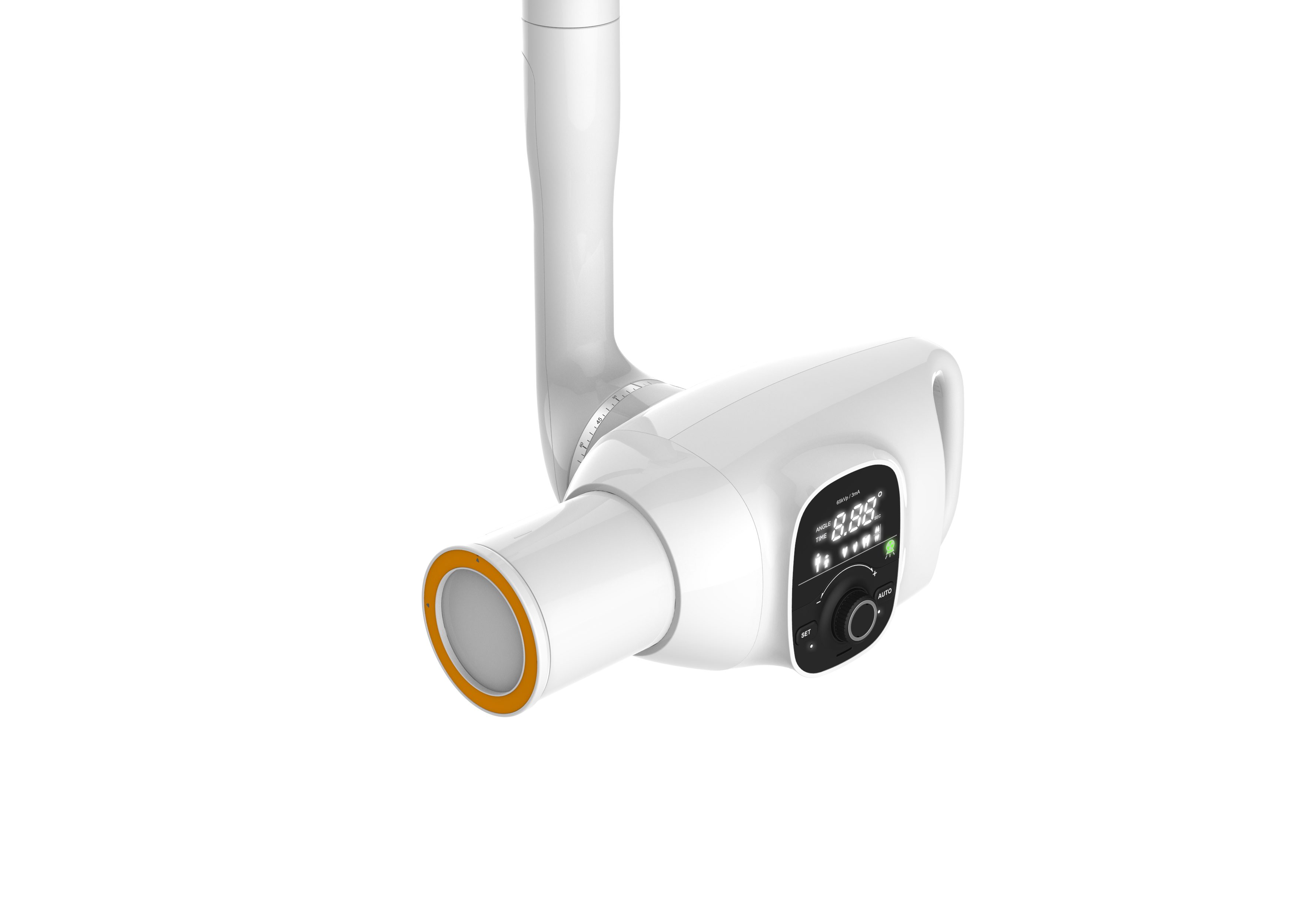

*Intuitive & convenient operating panel
*One dial for all function

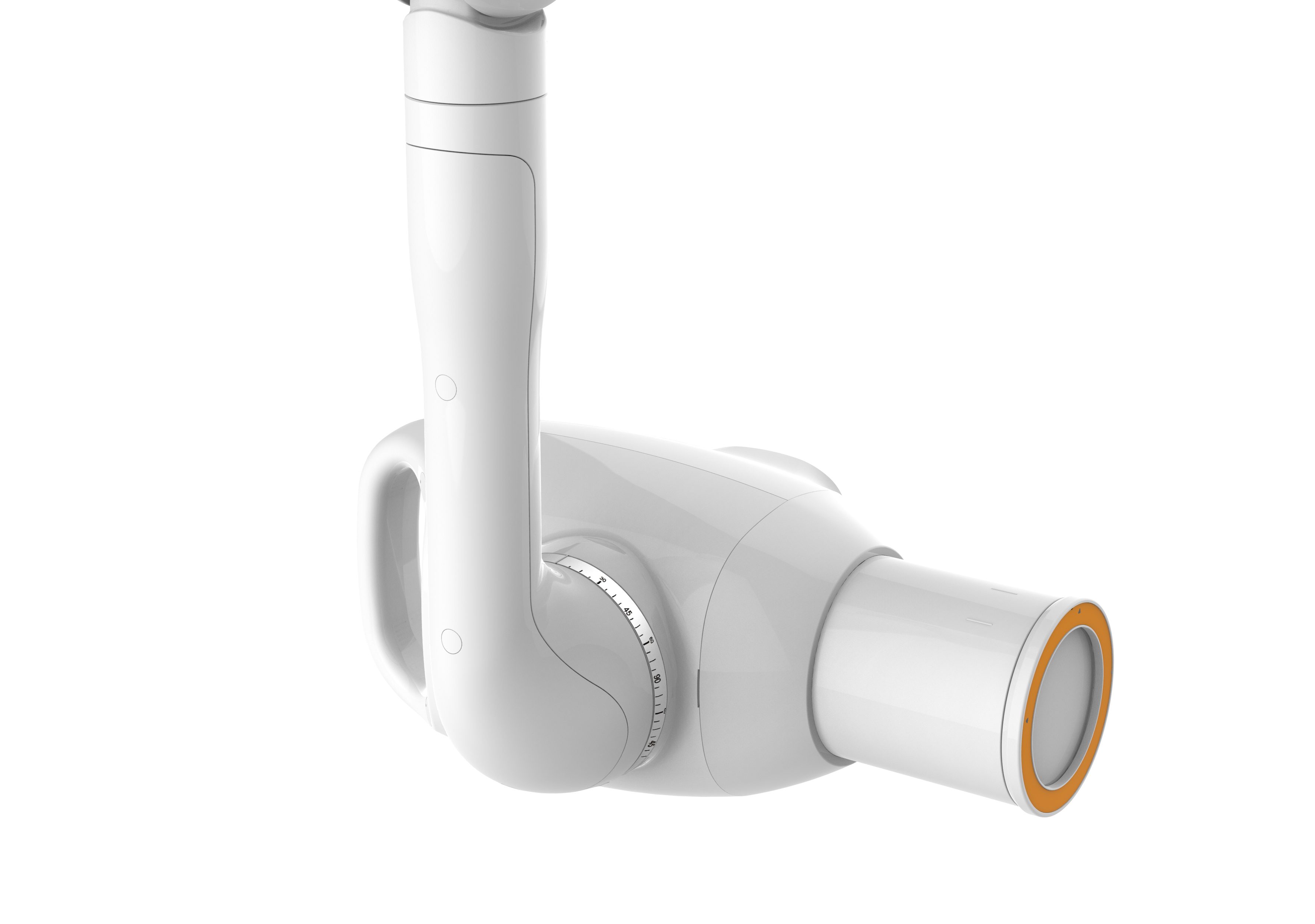

*2.4kg lightweight tube head for stable and safe use
*Compact design for easy use
SPECIFICATIONS
| Focal Spot | 0.4 mm (IEC 60336) |
|---|---|
| Tube Voltage (kV) | 65 kV |
| Current (mA) | 3.0 mA |
| Exposure Time Range | 0.05 ~ 0.5 (0.01s increment) |
| Source to Skin Distance | Min. 200 mm |
| X-ray Field | Default : 60 mm Round, 30×40 mm Rectangular Optional: 20×30 mm Rectangular |
| Arm Length [Option] | 450, 600, 900 mm |

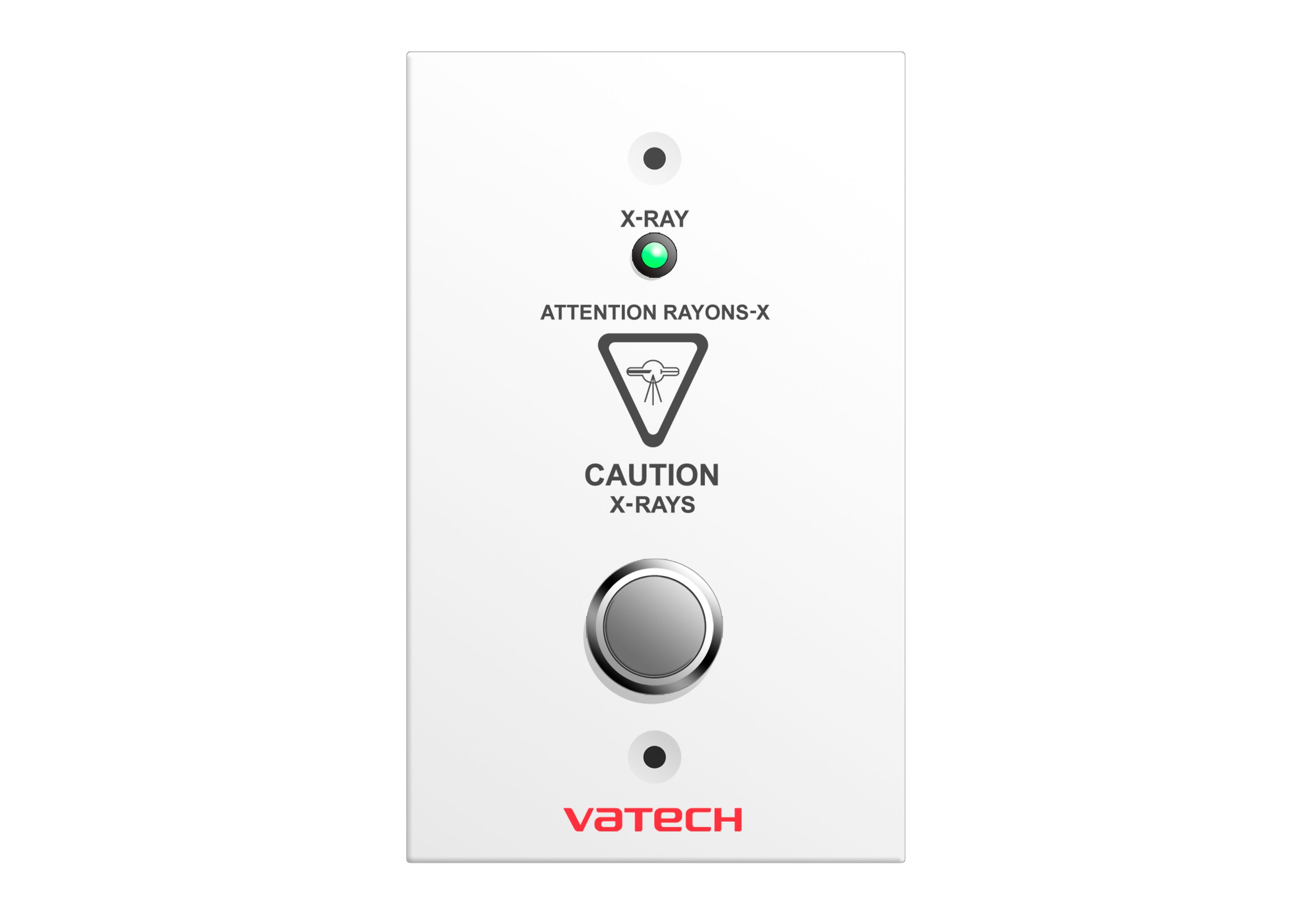

| Accessories | Remote Exposure Switch (Hand Switch / Doorbell Switch) |
| Weight | 15.9 kg (Arm Length 450 mm) 16.6 kg (Arm Length 600 mm) 17.9 kg (Arm Length 900 mm) |
The specifications are subject to change without prior notice.

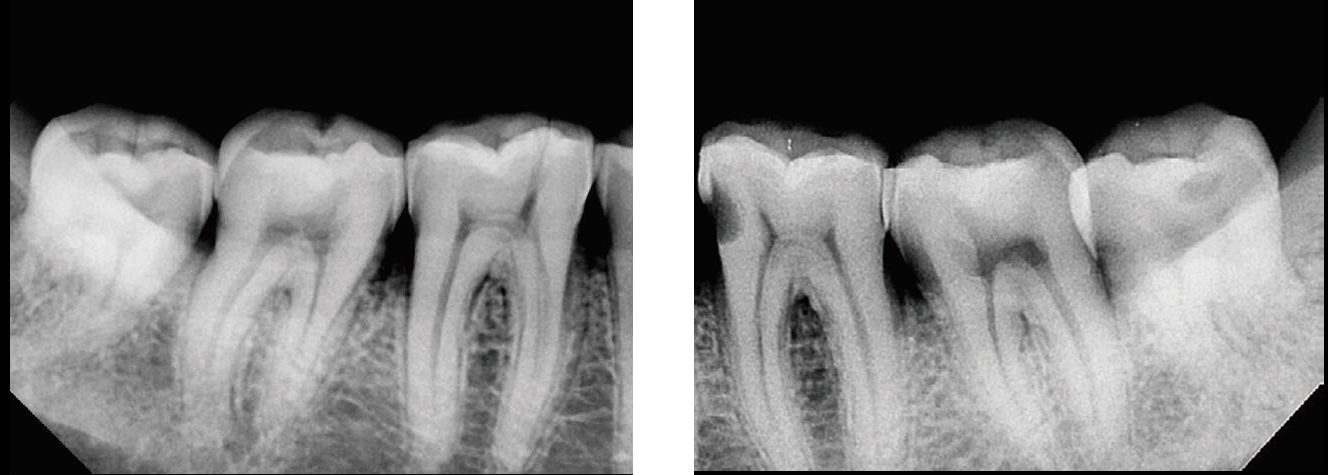

SECURE CLEAR IMAGES WITH A 0.4MM FOCAL SPOT
Regardless of which intraoral sensor you use, the EzRay Air minimizes blur and provides additional diagnostic value with a 0.4mm focal spot.

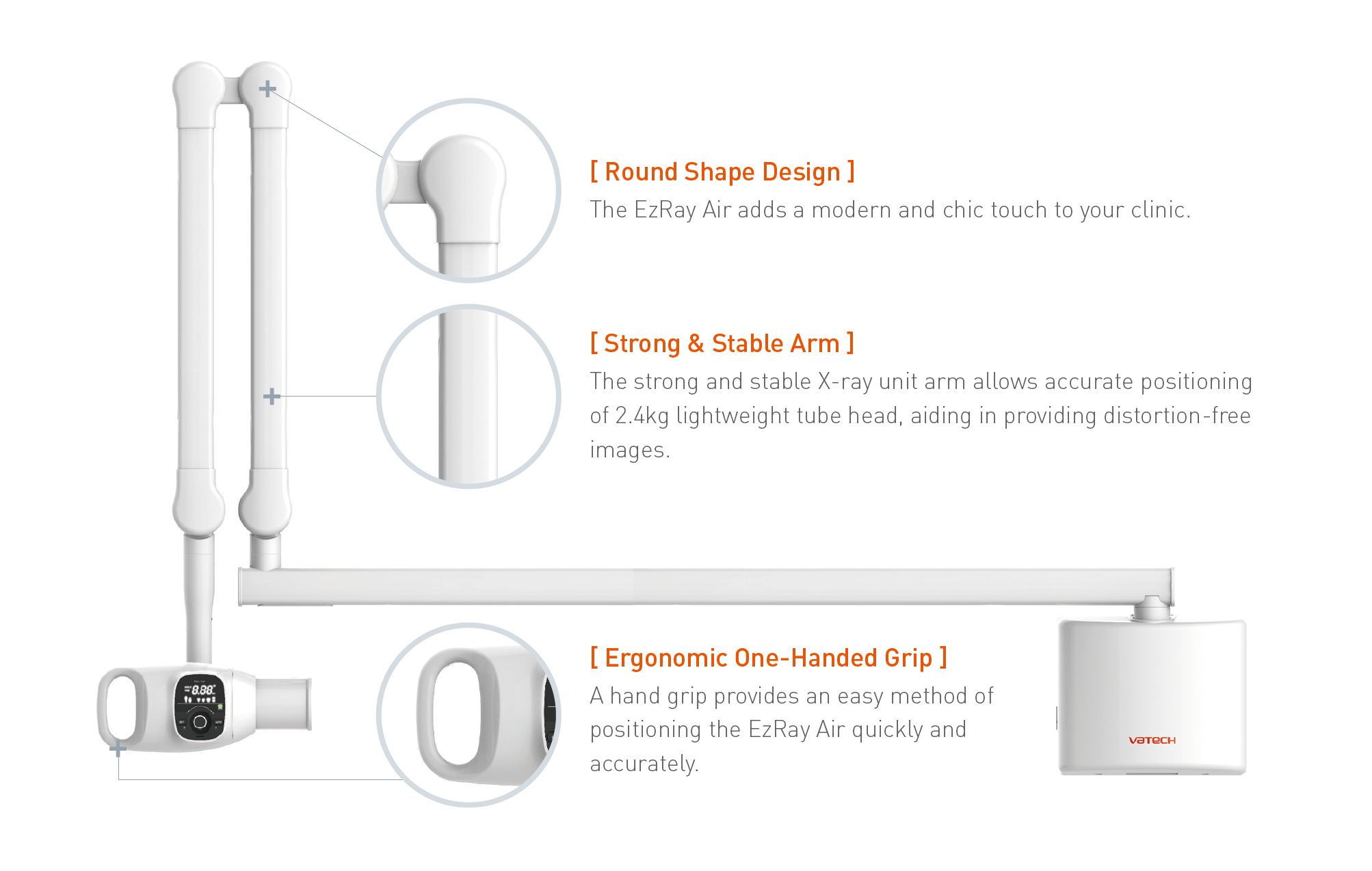

ERGONOMIC DESIGN FOR SAFETY AND EFFICIENCY
