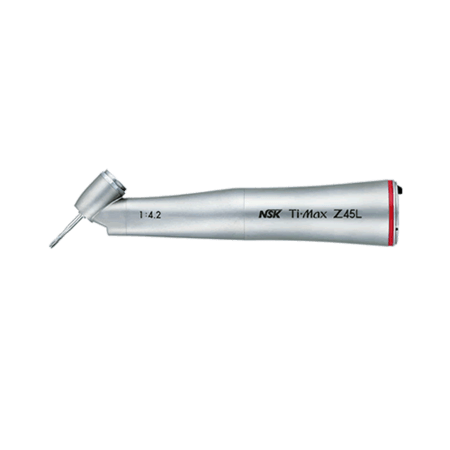

Model: NSK TI-MAX Z45L

  • Optic

Download Brochure


45-degree Angled Head Supplies Superior Accessibility and Maximum Visibility

The world’s first 45-degree contra-angle, Ti-Max Z45L provides effortless access to hard-to-reach molars that a standard contra-angle simply can’t match. The slim-form Ti-Max Z45L also offers excellent visibility and high operability, creating more space between adjacent teeth and the handpiece body. Ti-Max Z45L’s powerful and consistent cutting shortens treatment time for time-consuming sectioning and third-molar extractions compared to standard contra-angles, dramatically reducing stress for both clinicians and patients.

Technology & Function

45° Head
The 45-degree angled head allows easy access to the molar region, minimizing interference from the front teeth and adjacent teeth.

2 Way Spray Function
The world’s first two-way spray function allows you to instantly choose a mist or jet spray depending on the conditions and procedure with an enclosed dedicated tool. The water jet spray prevents subcutaneous emphysema in surgical procedures, and the mist Water Jet Mist spray effectively cools the bur while cutting.

Ti-Max Z45L is versatile, handling a wide range of burs from 20mm standard bur to 25mm long bur depending on what the procedure requires.

Titanium Body
Titanium body*. Light and very strong pure titanium is used for the body. The light handpiece reduces the burden on the hands during operations, and its enhanced hardness also improves its ability for autoclave sterilization. The biocompatible properties of titanium eliminate concern over allergies to metals.
*Titanium is used only for the exterior parts, and not for the interior.

An ergonomic body shape and the introduction of new DURAGRIP coating provide superior grip and handling comfort.

Microfilter to prevent particles from entering the water spray system to guarantee optimum water spray cooling at all times.


  • Head: 45° Angle Head
  • Gear Ratio: 1:4.2 Increasing
  • For: FG Burs (Ø1.6)
  • Head Size: Ø9.6 x H 14.5 mm
  • Water Spray: Quattro Spray (Water Jet / Mist)
  • Body Material: Titanium
  • Body Coating: DURAGRIP
  • Max Speed: 168,000 min-1


Anti Heat System / Cellular Glass Optics / Ceramic Bearings / Clean Head System / Push Button Chuck / Microfilter
