NSK iCARE C2
MODEL: NSK iCARE C2
ORDER CODE: Y1002787
iCare sets a new standard for handpiece maintenance systems. In one stylish and compact system it offersboth ease of use and multiple functions to assure ideal
cleaning and lubrication. The correct solution volume is preset based on handpiece type, and maintenance is initiated at the touch of a button. The chuck cleaning system keeps chucks pristine, and the purging select mode allows purge time to be adjusted depending on the situation for truly comprehensive maintenance.
Thanks to its stylish and compact body, iCare is also space efficient and is harmonious to the clinical practice environment. iCare automatically cleans and lubricates up to four handpieces in less than two minutes. The full 1.2 litre integrated solution tank is sufficient for up to 5,000 individual handpiece maintenance cycles.
Technology & Function
Stylish & Compact
In the pursuing ultimate ease of use, NSK has given iCare the power to perform automatic maintenance for up to four handpieces at once.
iCare is also designed to be simple to set up and space efficient, you can install it virtually anywhere.
Easy to Clean

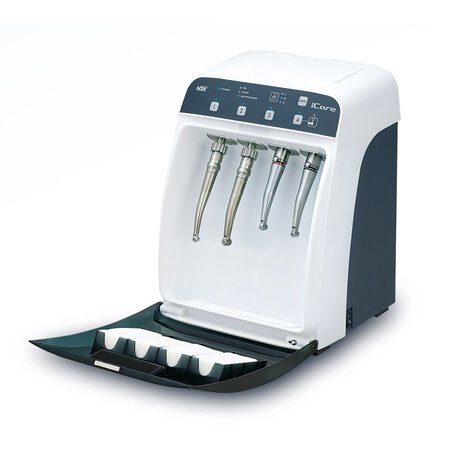

iCare’s front door can be completely removed to allow fast, easy cleaning of the system.
Big Solution Tank
iCare’s big solution tank has a capacity of 1.2 liters, allowing you to pour in a full one-liter bottle of maintenance solution at once, reducing the necessity for frequent refilling.
The enclosed nozzle enables clean and easy refills.
Handpiece Head Filter
Handpiece Head Filter is made to absorb any spray mist generated, which prevents mist leaks.
Purging Select Mode
After lubrication, you can select from appropriate modes offering different purge lengths.
iCare Maintenance Oil
The specially formulated maintenance oil provides for the highest levels of lubricating of handpieces.
- Power Supply: AC 100-240 V 50/60 Hz
- Air Pressure: 0.5-0.6 MPa (5.0-6.0 kgf/cm2)
- Weight: 6.5 kg (C2 Type / C3 Type)
- Dimension: W 280 x D 240 x H 350 mm
- Solution Tank Capacity: 1.2 L
* Connects only to Midwest 4-hole type
* Air piping is necessary (5.0-6.0 kgf/cm2)
- iCare Unit / Power Cord / Chuck Lubrication Nozzle / Maintenance Oil for iCare (1 Litre) / Mist Filter Set / Oil Absorber Sheet / Air Tube
Dual Standard Ports + Dual Rotation Ports
|For NSK High Speed Handpieces for PTL-CL-LED Coupling
|B2 / M4 Adaptor
|For Borden 2 hole High Speed Handpieces
|For KaVo® High Speed Handpieces for MULTiflex® LUX Coupling
|For Sirona® High Speed Handpieces for Quick Coupling
|For W&H® High Speed Handpieces for Roto Quick Coupling
|For Bien-Air® High Speed Handpieces for Unifix® Coupling
|For ENDO-MATE TC2, DT, DT2 and TASKAL Wizard Heads
Check with the dealer for the adaptors to mount other manufactures’ handpieces.
