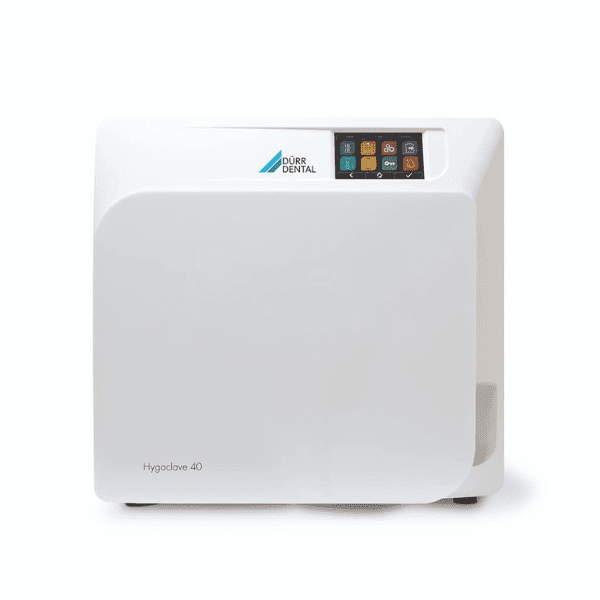

Durr Hygoclave 40 Plus

Durr Hygoclave 40 Plus

Durr Hygoclave 40 Plus

The new pacesetter in the hygiene cycle

In order for sterilisation equipment to really make a difference in demanding day-to-day practice, it needs to deliver outstanding strengths in all key areas. This includes ensuring reliable sterilisation results and offering a combination of genuinely user-friendly operation, exceptional efficiency and high reliability. With the Class B Hygoclave 40, DÜRR DENTAL meets the highest professional requirements for sterilisation cycles and thus provides a cost-effective basis for successful day-to-day working.

Intuitive interface
With a high-resolution 5″ colour touch display featuring an intuitive user interface, it couldn’t be easier to use and operate your Hygoclave 40.

Seamless documentation

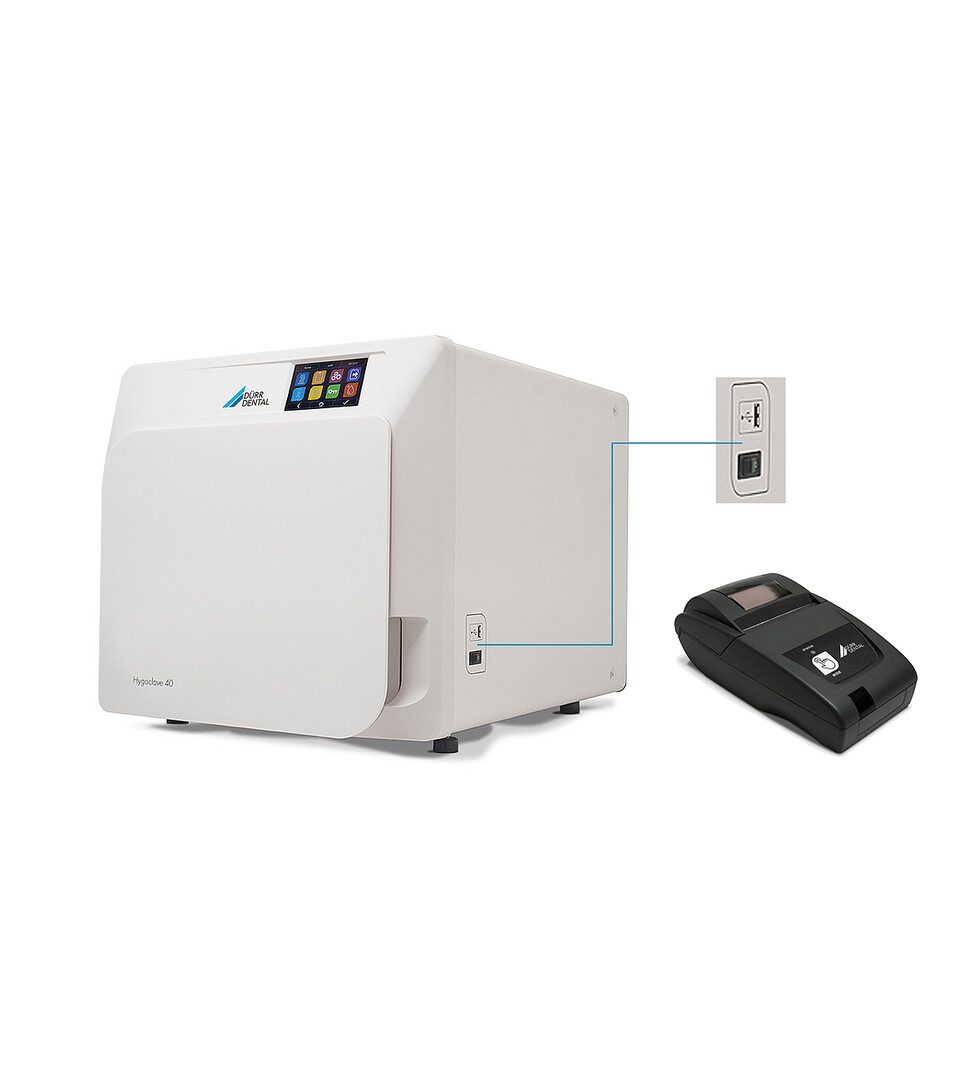

All sterilisation records and the cycle information are automatically saved in the internal memory of the unit. The records can be easily downloaded and opened as PDF files, with flexible options to do this via USB, Ethernet or Wi-Fi. In addition, the records can also be printed out using the optionally available external printer.

Integrated filling pump
Maximum flexibility for filling the fresh water container thanks to the additional connections on the front and the integrated filling pump.

Take a look at the Hygoclave 40 / 40 Plus Brochure

0000

KEY FEATURES

Reliable

Reliability thanks to a flexible, high-performance drying system

Safe

Integrated fresh water quality testing

Convenient

Simple loading and unloading with a motorised door

Intuitive

5″ high-resolution colour touch screen

Technical data

Supply voltage: 220V–60 Hz , 230V–50/60 Hz , 240V–50 Hz

Maximum current consumption: 9.6 A

Maximum power consumption: 2200 W

External dimensions: 493 x 484 x 654 mm

Weight: 61 kg

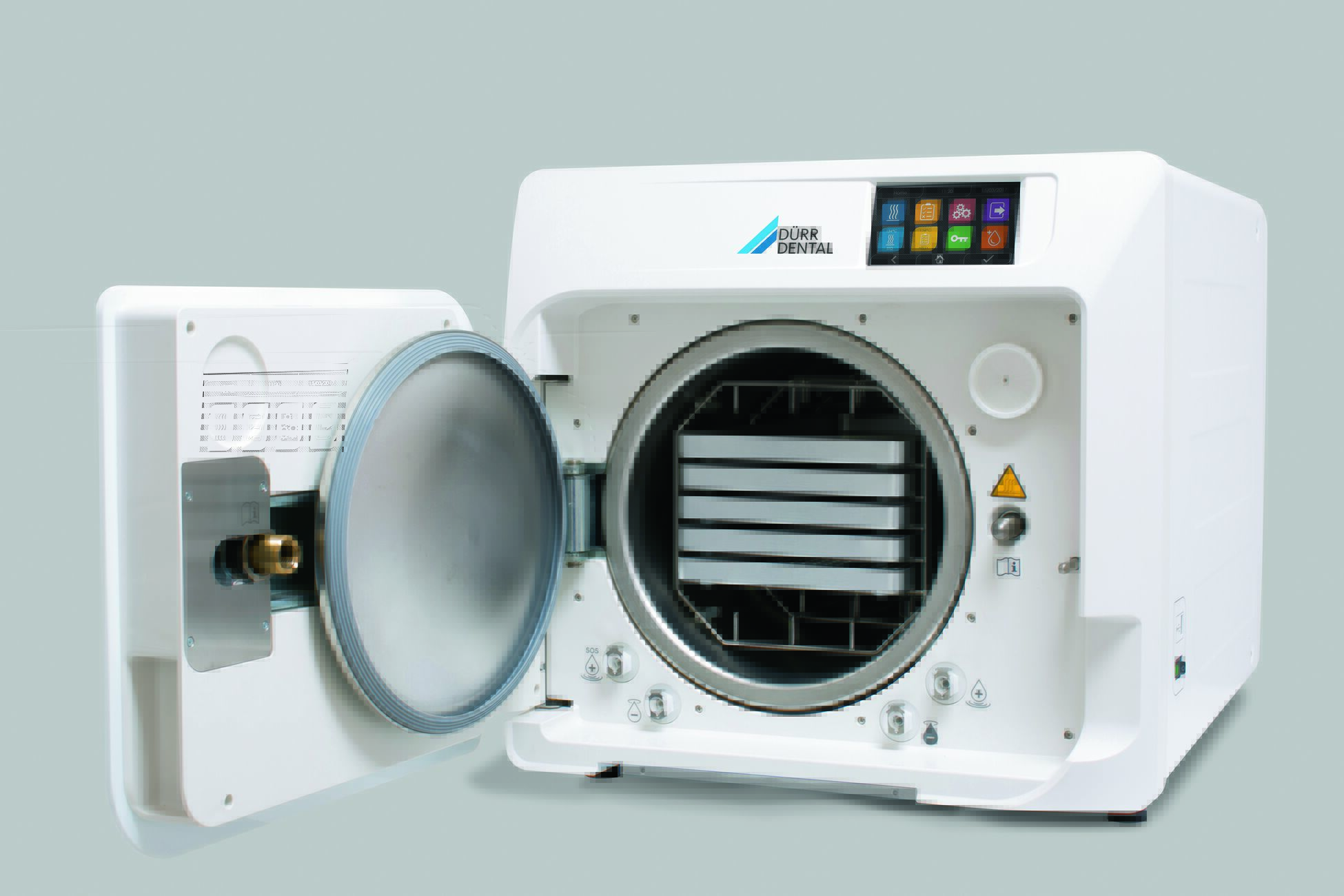

Chamber dimensions: 250 x 450 mm

Chamber volume: 22 l

Chamber material: Stainless steel

Fresh water container: 5.2 l

Maximum load / standard cycle

Solid load unwrapped: 6.5 kg

Solid load wrapped: 4 kg

Porous load: 2 kg

Maximum load / B flash cycle

Solid load wrapped: 0.7 kg

Porous load: 0.3 kg

Cycle times*

Cycle 134°C – Standard: 47 min

Cycle 134°C – Prion: 59 min

Cycle 121°C – Standard: 57 min

B flash cycle: 30 min

*Average values determined at maximum load including pre-heating phase and drying.
Standards: EN 13060/ EN 61010-1/ EN 61326/ EN 61010-2-40.
